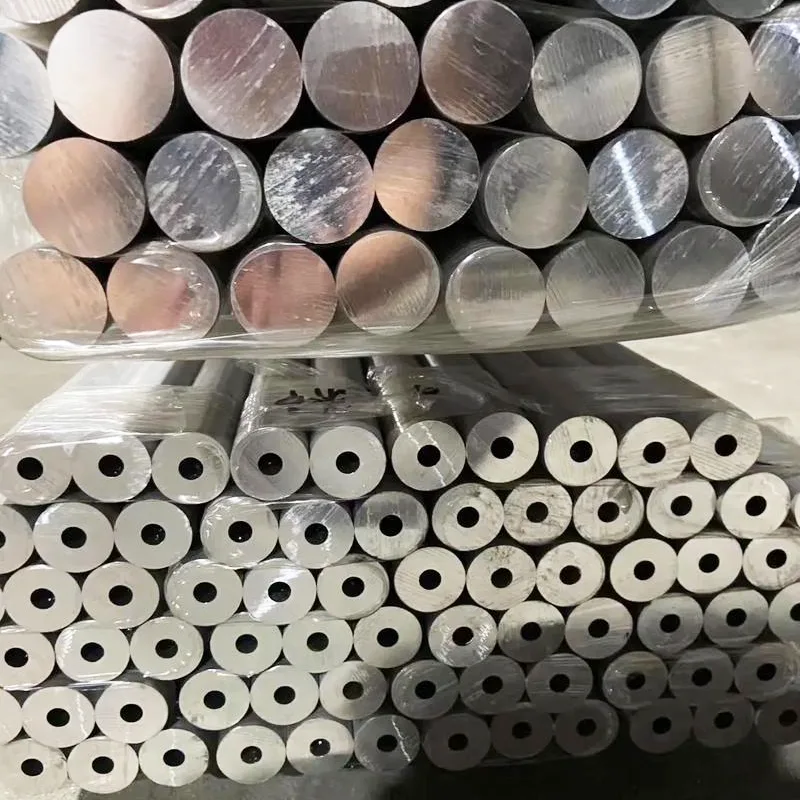

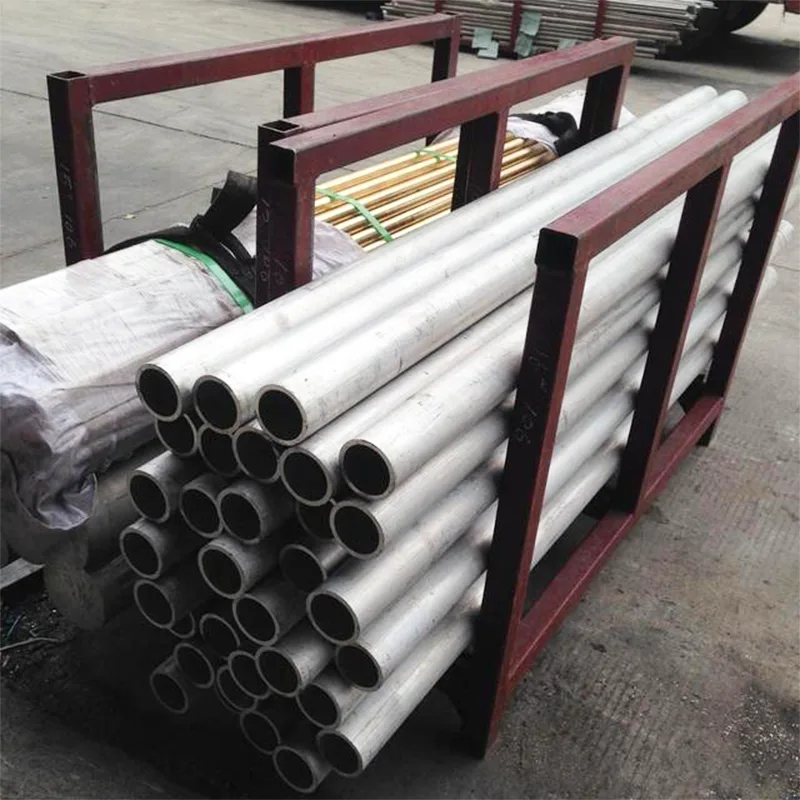

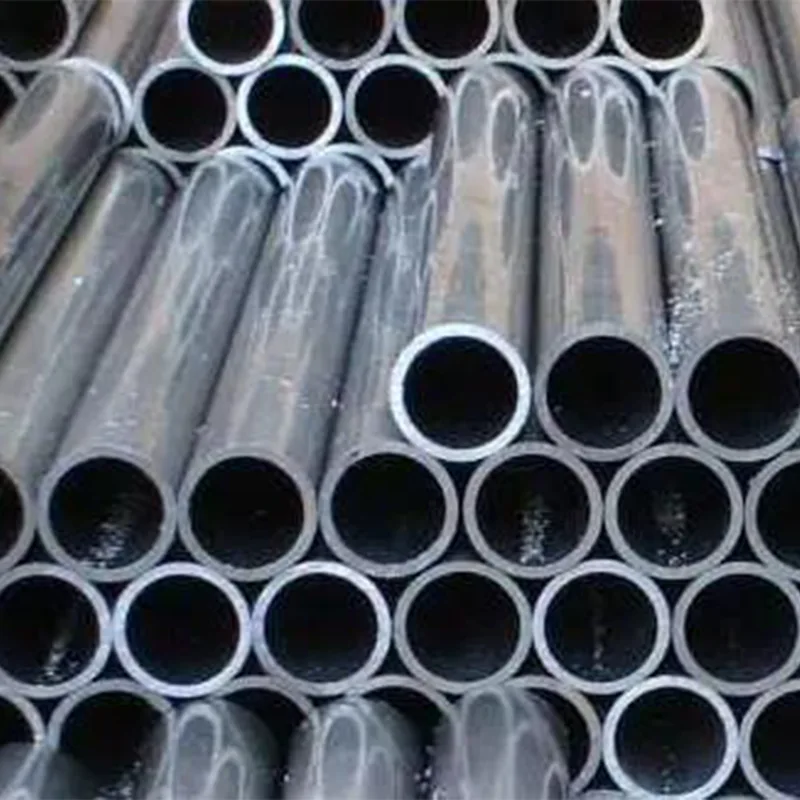

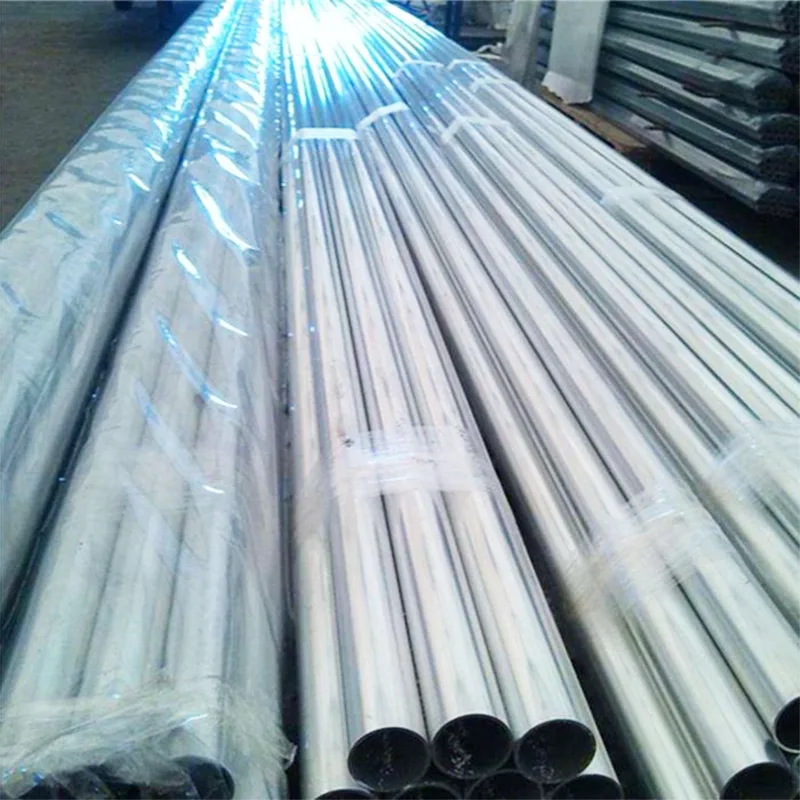

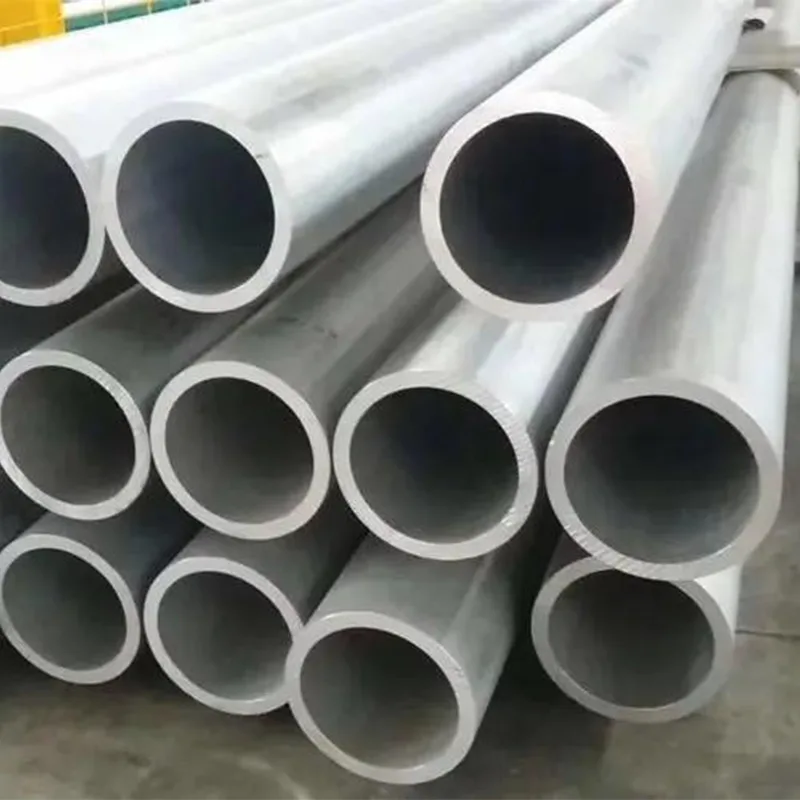

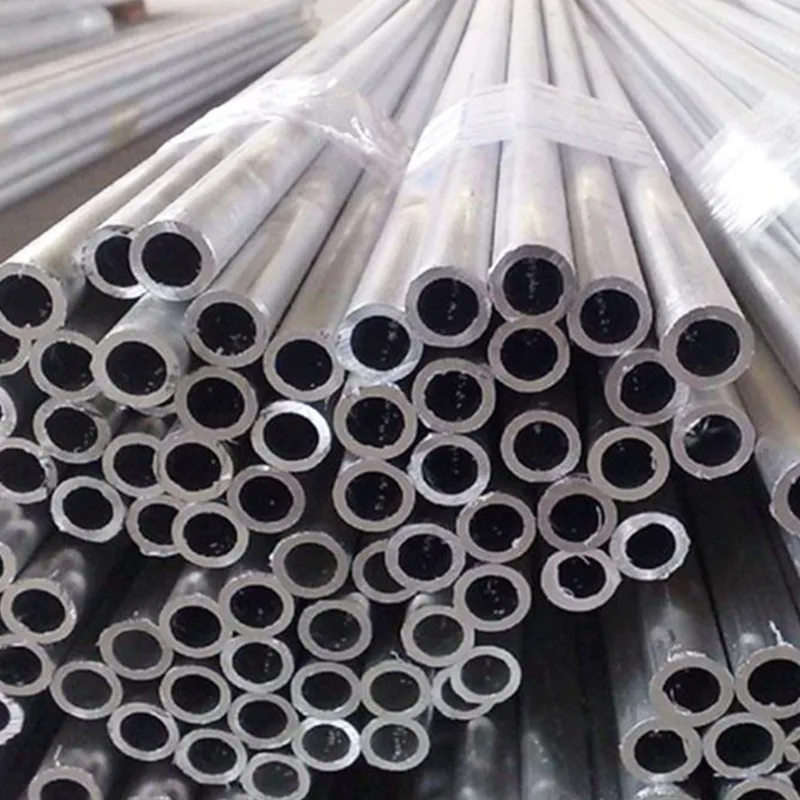

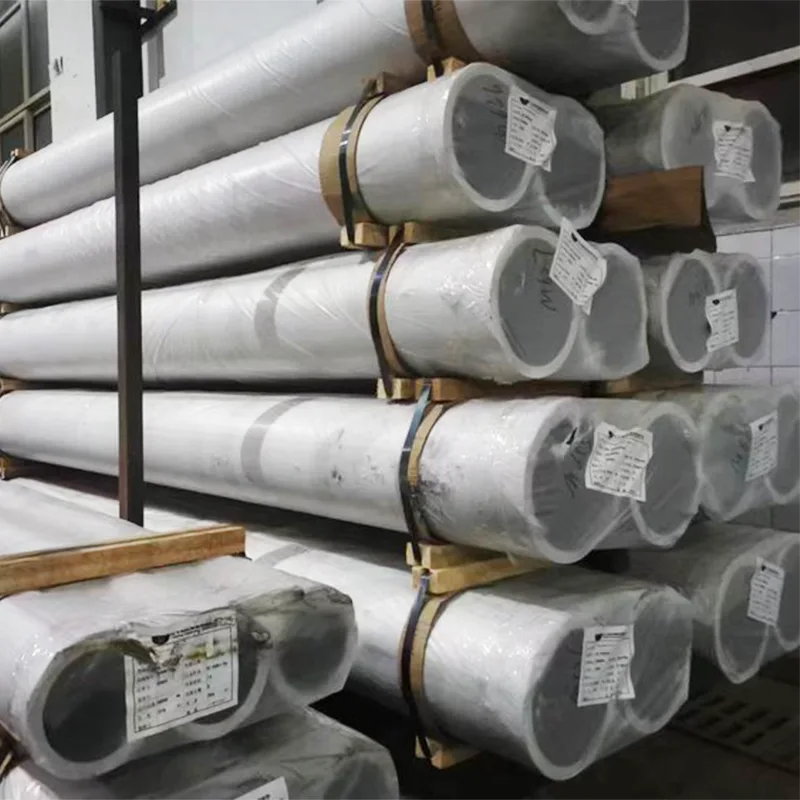

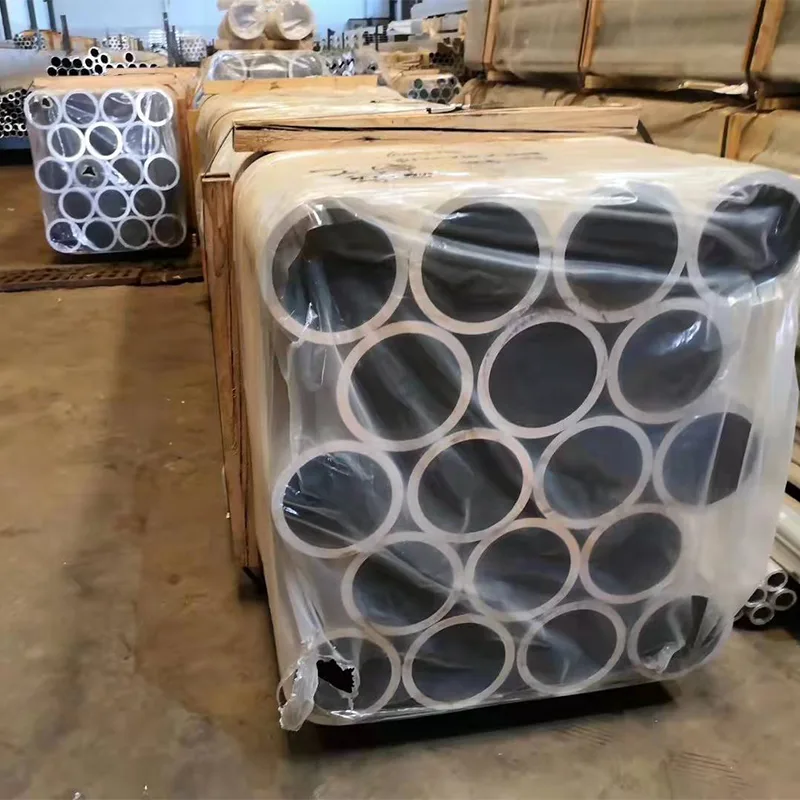

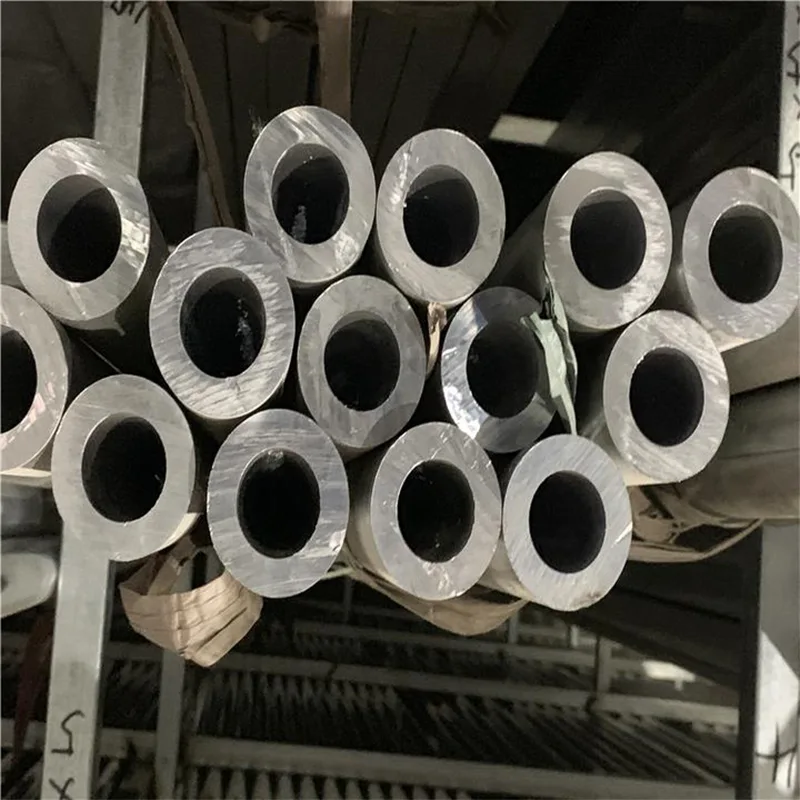

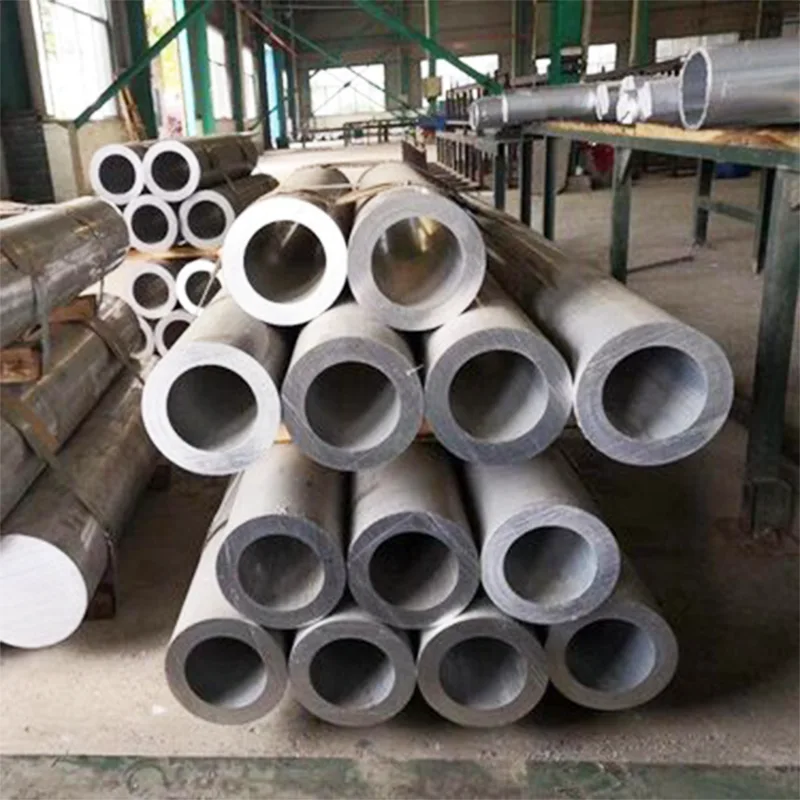

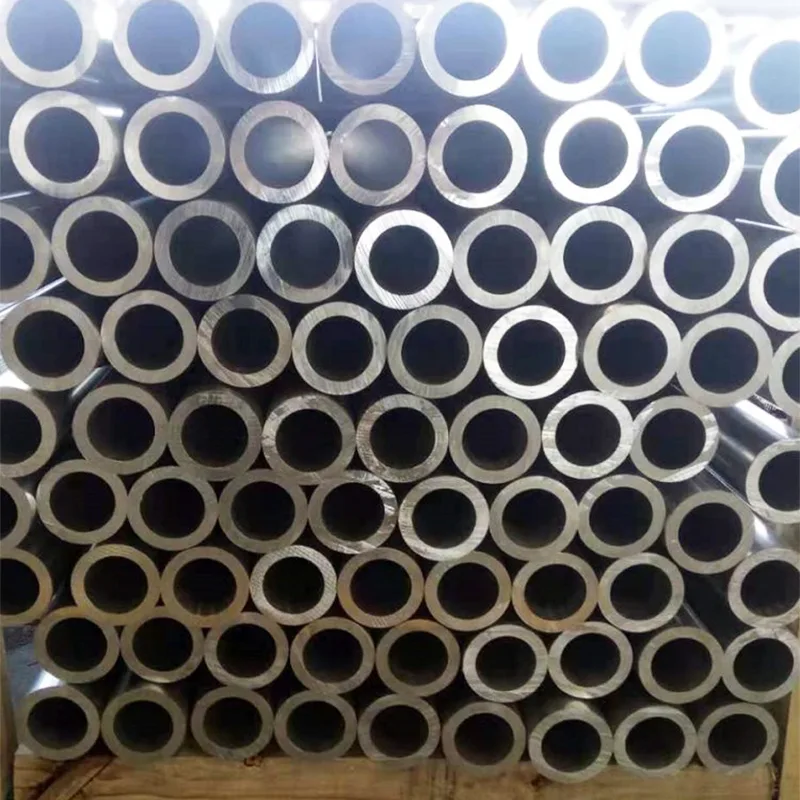

5A06 Aluminum Tube

Core characteristics: It has high strength, excellent corrosion resistance (especially seawater corrosion resistance), good weldability, and plasticity. Because its main alloying element is magnesium (Mg content 5.8%-6.8%), it is also known as a high-magnesium alloy.

Alternative names: 5A06 is the current national standard grade, its corresponding old grade is LF6. In some international standards, it is also often referred to as AA5086 or A5086.

Is 5A06 aluminum tube easy to weld? What should be noted during processing?

The weldability of 5A06 aluminum tube is one of its outstanding advantages, but the choice of processing method is crucial.

Weldability: Excellent. It is suitable for various welding methods such as argon arc welding (TIG/MIG), spot welding, and gas welding. The strength of the welded joint can usually reach more than 90% of the strength of the base material, and the weld airtightness is also very good.

Processing Precautions:

Machining: Machining is possible, but falls under the category of "good machinability," meaning processing efficiency is lower than some specialized free-machining alloys.

Plastic Forming: Plasticity is good in the annealed or hot-extruded state, but decreases after cold work hardening. Therefore, annealing is recommended to restore plasticity before complex forming processes such as deep drawing and bending.

Heat Treatment: 5A06 is an alloy that cannot be strengthened by heat treatment; its strength is mainly obtained through cold work hardening. After welding, the heat-affected zone softens, and subsequent cold working may be necessary to restore strength.

What key parameters need to be confirmed when purchasing 5A06 aluminum tubes?

1. Supply Condition (Tempers): Common conditions include O (annealed), H112 (hot-extruded), and H32/H34 (cold-worked). The mechanical properties vary greatly depending on the condition, and must be specified according to your processing and usage requirements.

2. Specifications and Dimensions: Specify the outer diameter (OD), wall thickness (WT), and length. 3. Applicable Standard: Confirm whether it conforms to Chinese national standards (GB), American standards (ASTM/AMS), or other standards, as this relates to the material's chemical composition and performance indicators. For example, the aerospace industry may require stringent standards such as AMS 4027.

4. Surface Quality: Determine if surface treatments such as anodizing or spraying are required, or if there are special requirements for surface finish.
