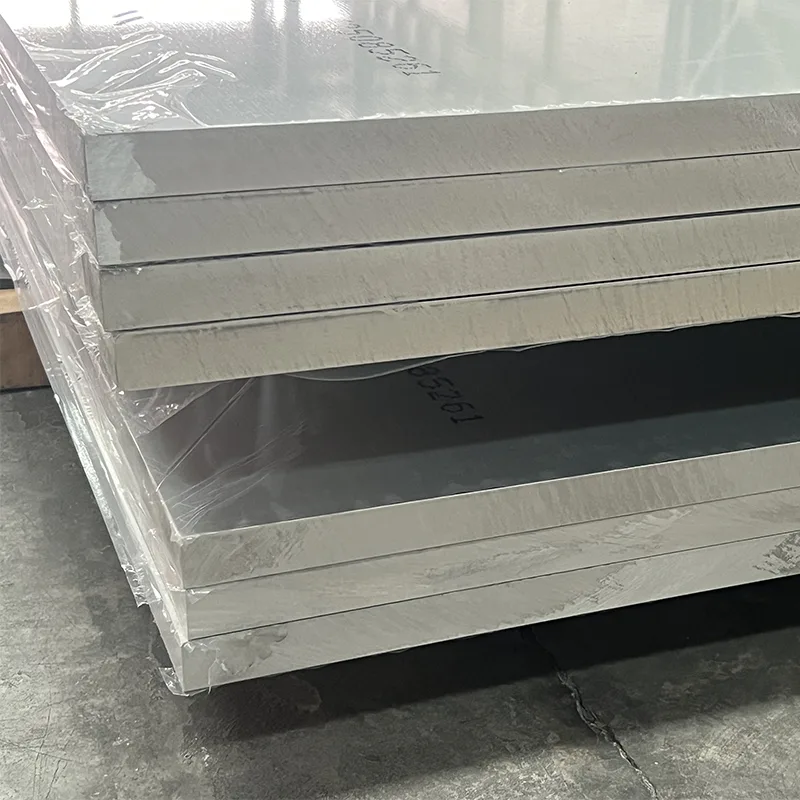

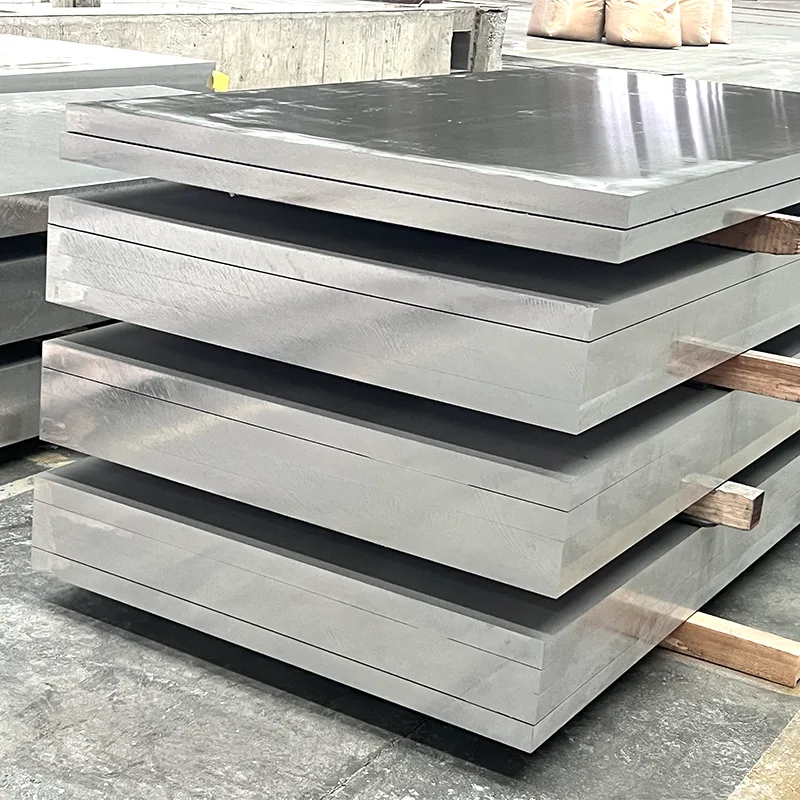

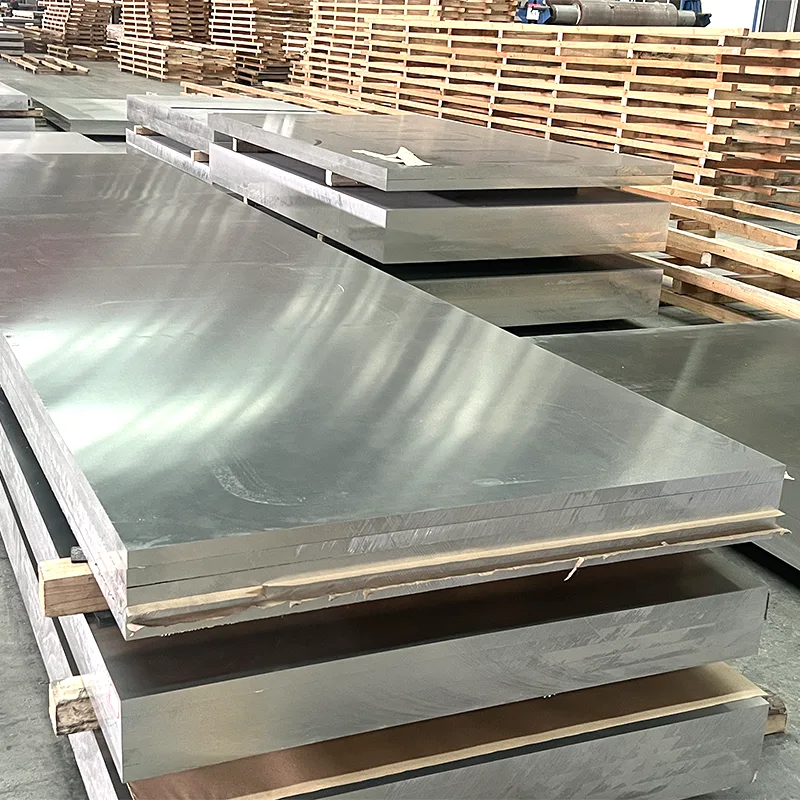

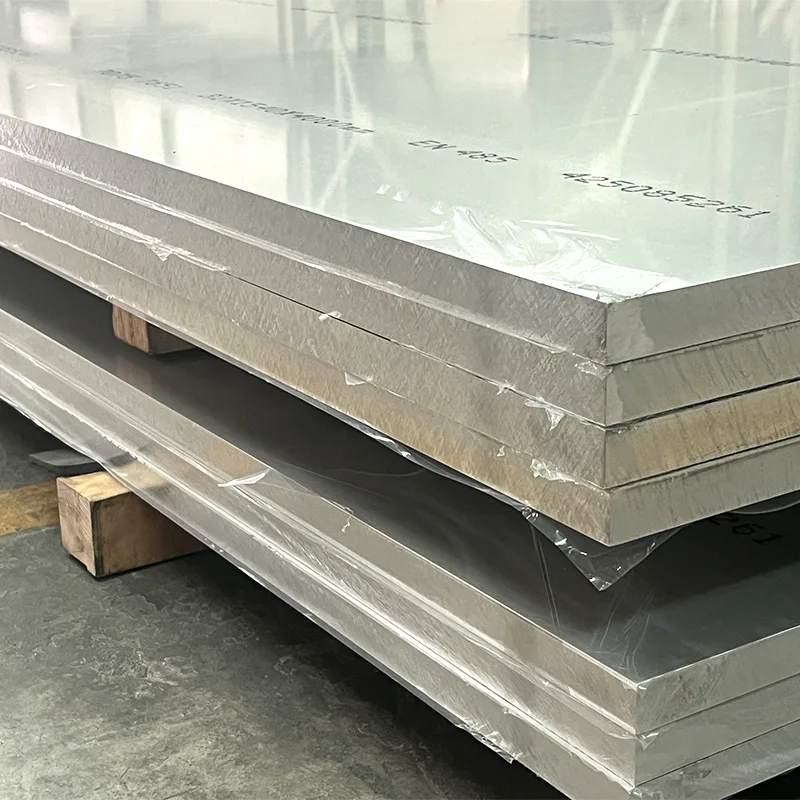

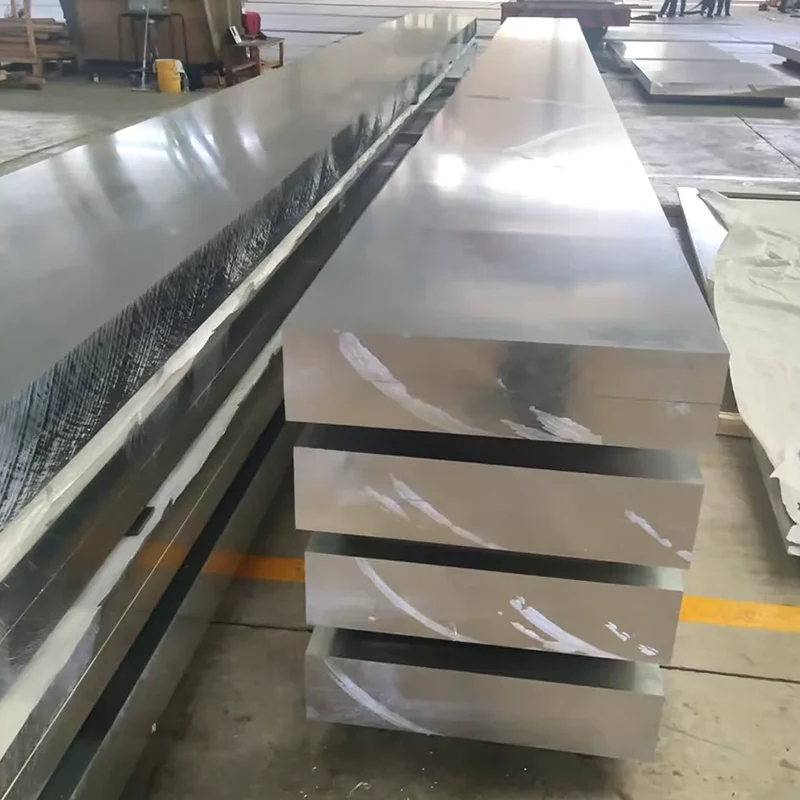

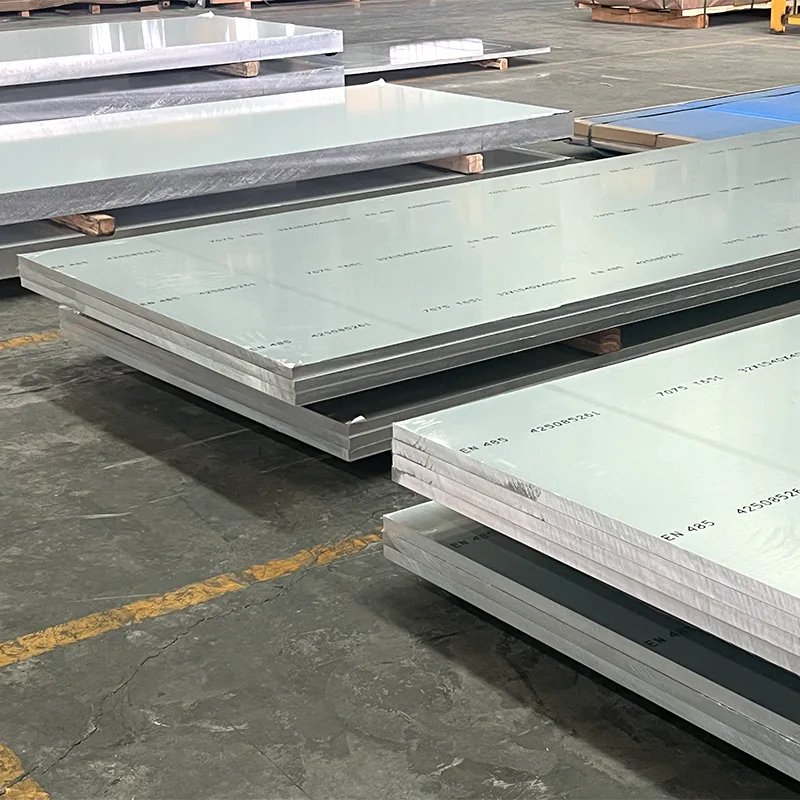

5083 Aluminum Alloy Sheet

5083 Aluminum Alloy Sheet is a high-magnesium aluminum-magnesium alloy sheet known for its exceptional corrosion resistance and high strength, performing particularly well in marine environments.

Classified as a non-heat-treatable aluminum alloy, it derives its strength primarily through cold working while retaining excellent weldability and formability.

Core Performance Characteristics:

1. Significantly higher strength than 1-series and 3-series aluminum sheets, with medium-to-high strength and good toughness. It cannot be strengthened by heat treatment; strength is improved through cold working.

2. Extremely strong corrosion resistance, especially against seawater, salt spray, and industrial atmospheres, making it a commonly used aluminum material in shipbuilding and marine environments.

3. Excellent weldability, high weld strength, and resistance to cracking, suitable for welded structures such as pressure vessels, storage tanks, and pipelines.

4. Good plasticity, can be bent, stamped, and formed, with moderate processing difficulty and stable surface treatment.

5. Excellent low-temperature performance, does not become brittle in cold environments, commonly used in refrigeration equipment and cryogenic structural components.

Table comparing properties, hardness, and applications of different states

Selection Requirements:

1. For bending, deep drawing, and complex forming: Choose the O state, which has the best plasticity and is the easiest to process.

2. Marine, shipbuilding, salt spray, and pressure vessel environments: Prioritize H116, which has the best corrosion resistance.

3. For medium-thickness structural components and general cryogenic/welding applications: Choose H112/H111, which offers a balance of strength and toughness.

4. For heavy-duty structures requiring higher strength: Choose H321, which balances rigidity and corrosion resistance.

FAQ

1. What is 5083 Aluminum Alloy Sheet?

5083 aluminum alloy sheet is a high-magnesium alloy known for its excellent corrosion resistance, especially in marine and saltwater environments. It offers good weldability, high strength, and outstanding performance in harsh conditions.

2. What are the main advantages of 5083 aluminum sheet?

●Excellent seawater and corrosion resistance

●High strength among non-heat-treatable aluminum alloys

●Good weldability and formability

●Stable performance in low-temperature environments

●Long service life in marine and industrial applications

3. What industries use 5083 aluminum sheet?

It is widely used in:

●Shipbuilding and marine engineering

●Offshore structures and oil platforms

●Automotive and rail transportation

●Pressure vessels and storage tanks

●Chemical processing equipment

4. Is 5083 aluminum sheet suitable for welding?

Yes. 5083 has excellent weldability using common methods such as TIG and MIG welding. It maintains good strength after welding, making it ideal for structural applications.

5. What is the difference between 5083 and 5052 aluminum sheet?

5083: Higher strength, better corrosion resistance, especially in seawater environments

5052: Better formability, lower strength, suitable for general sheet metal applications

5083 is preferred for heavy-duty marine and structural uses.

6. Can 5083 aluminum sheet be used in marine environments?

Yes. It is one of the most commonly used marine-grade aluminum alloys due to its excellent resistance to seawater corrosion and durability in offshore conditions.

7. What surface finishes are available?

Common options include:

●Mill finish

●Polished finish

●Anodized treatment

●Custom surface coating (depending on application needs)

8. How should 5083 aluminum sheet be stored?

It should be stored in a dry, ventilated environment, away from moisture and corrosive chemicals to maintain surface quality and prevent oxidation.
