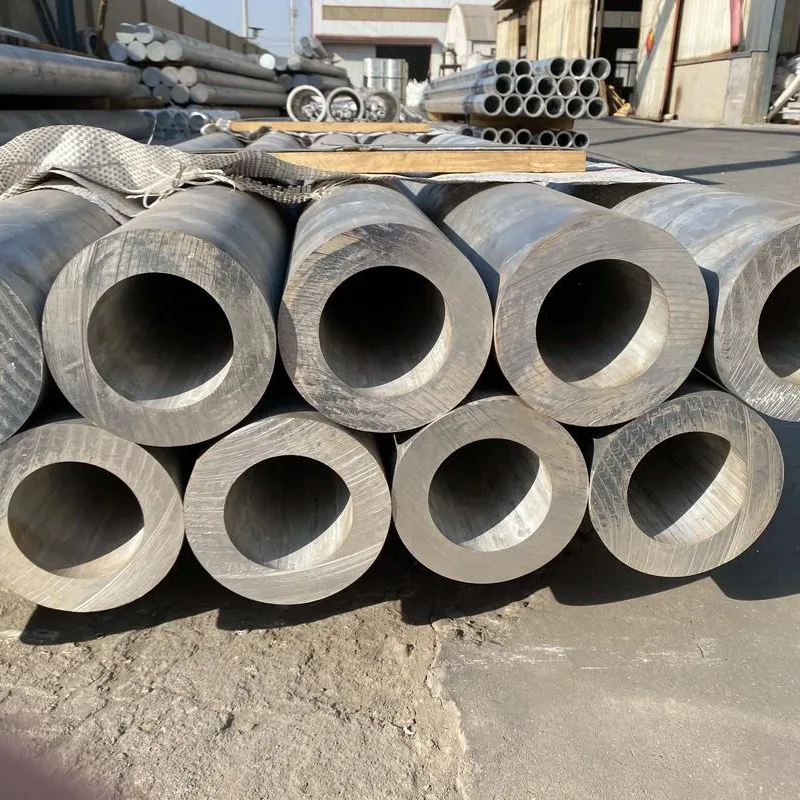

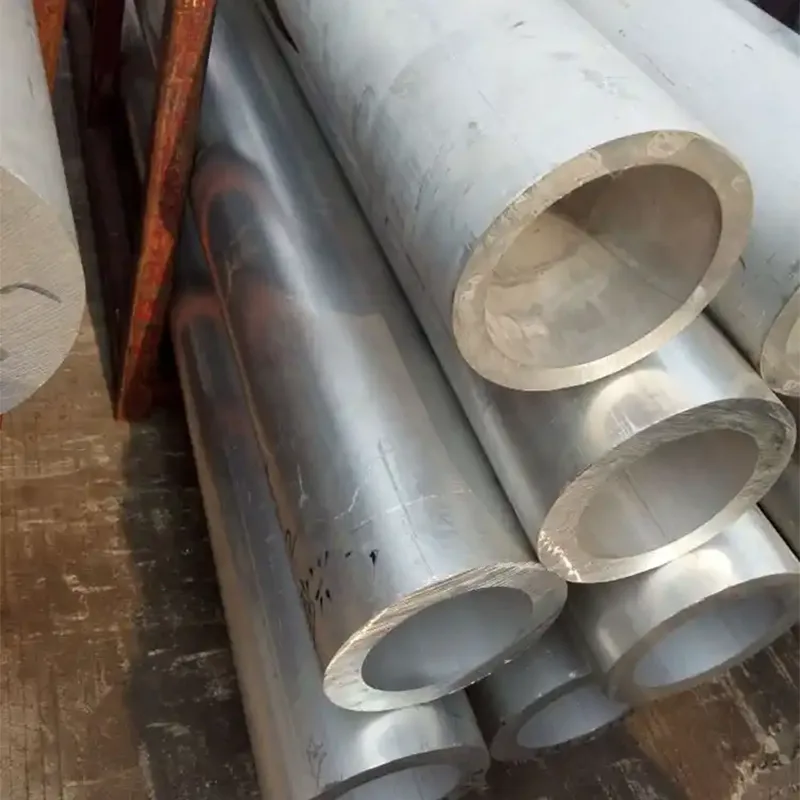

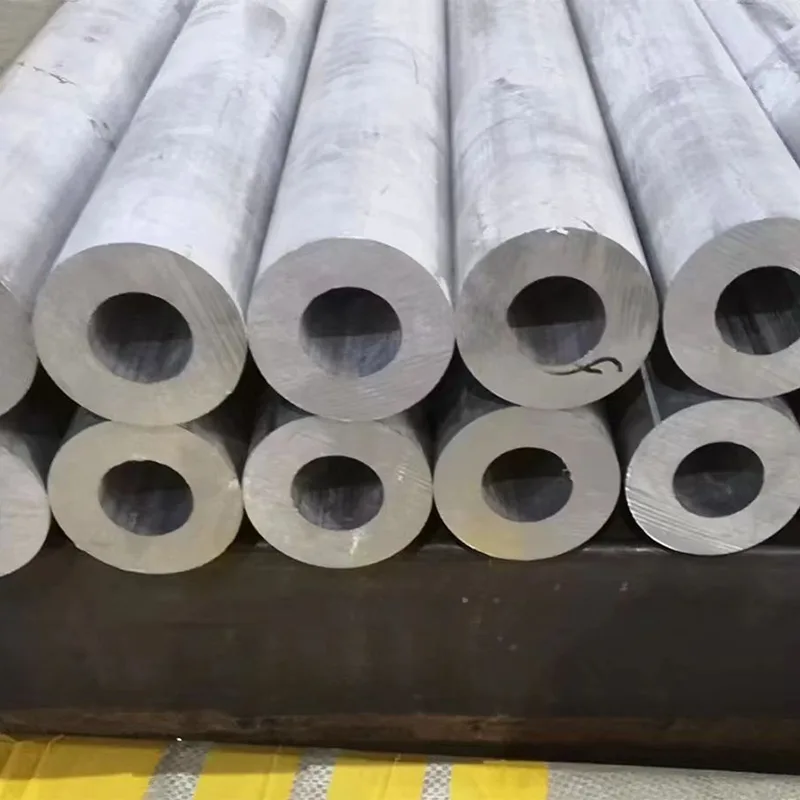

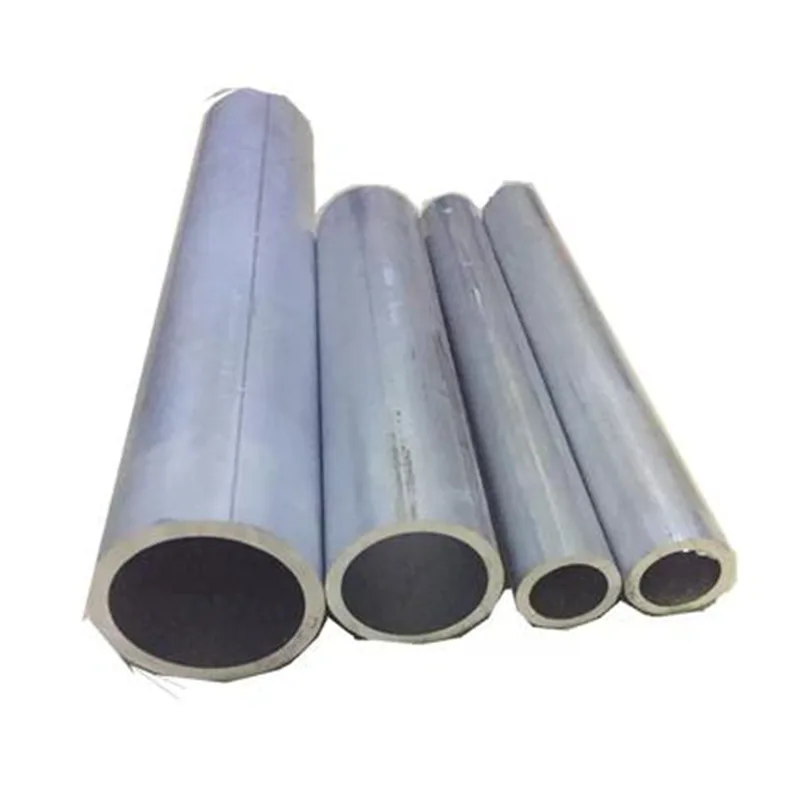

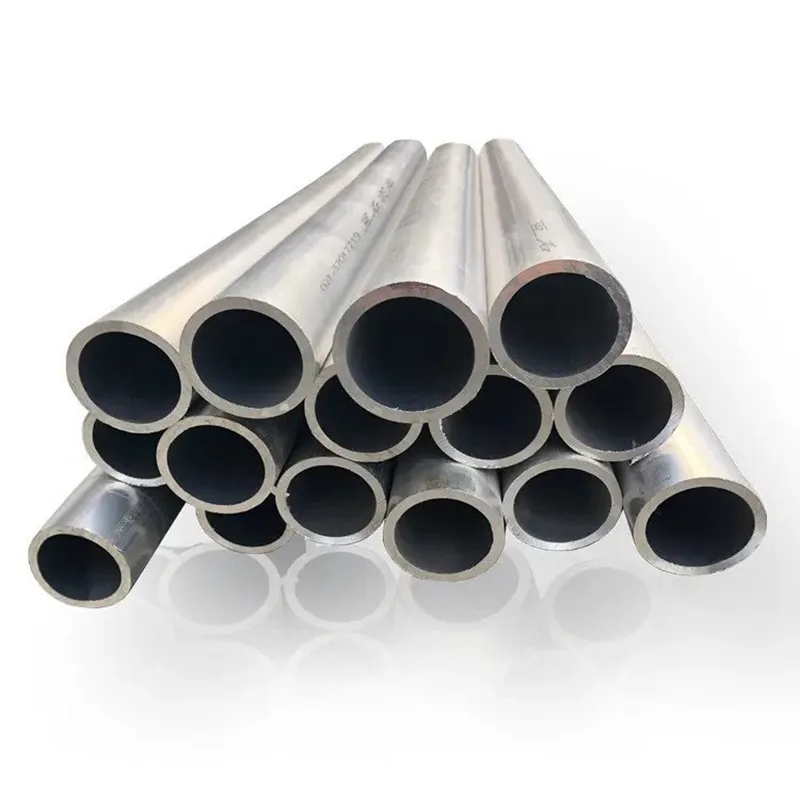

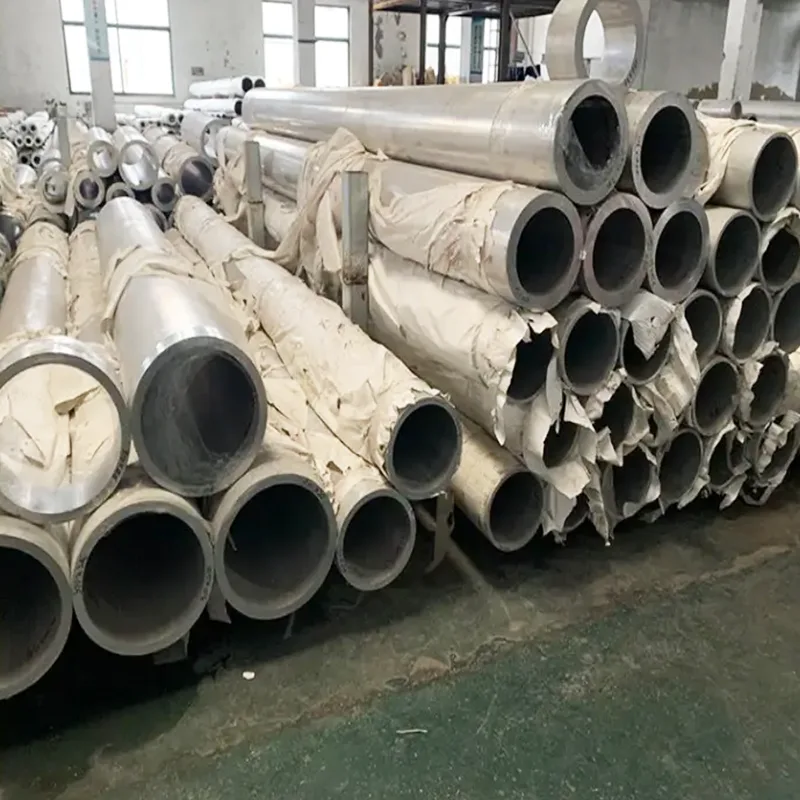

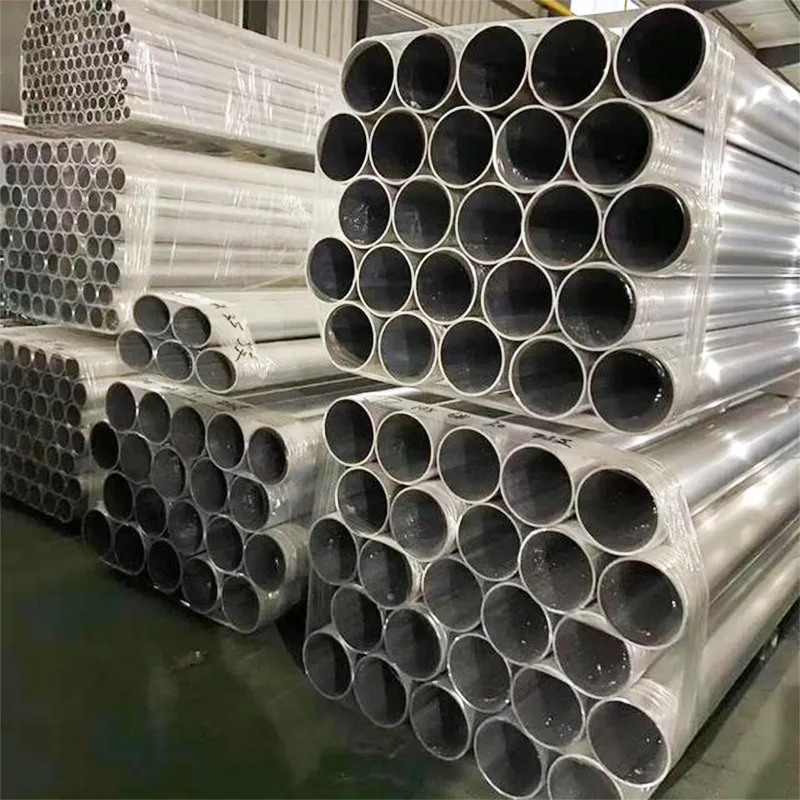

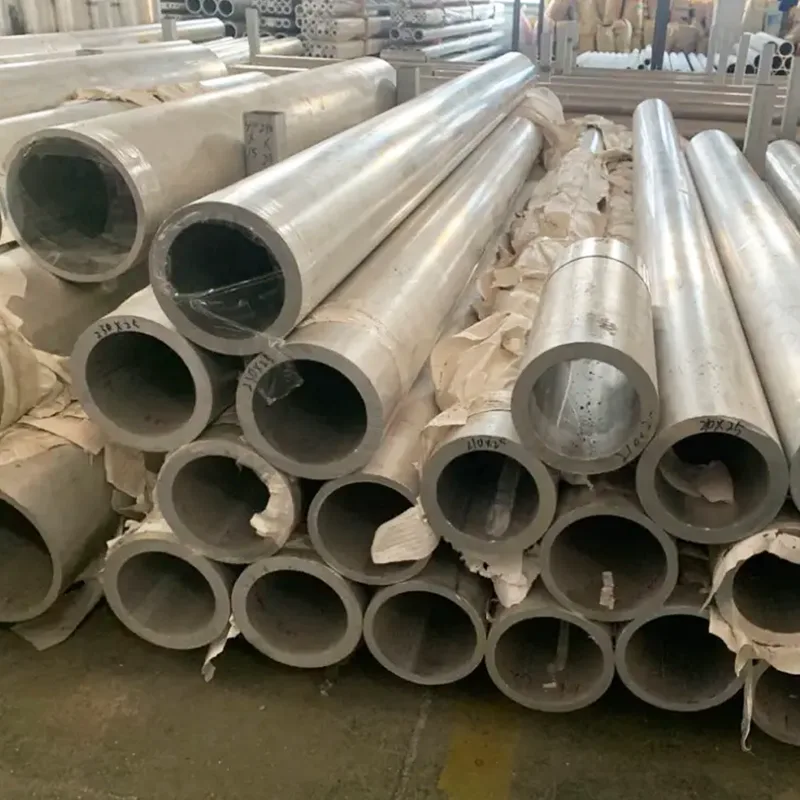

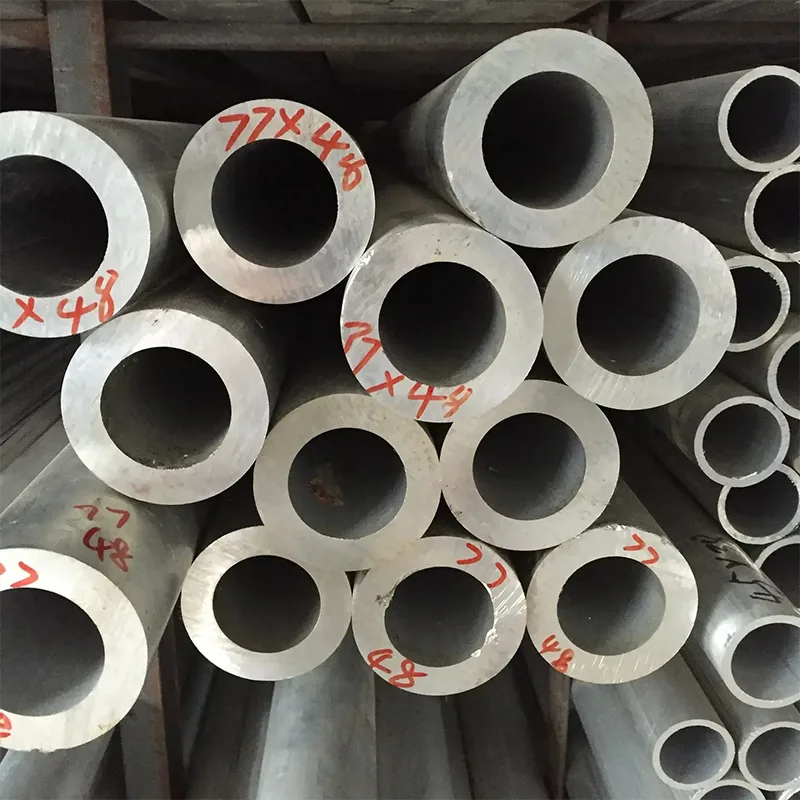

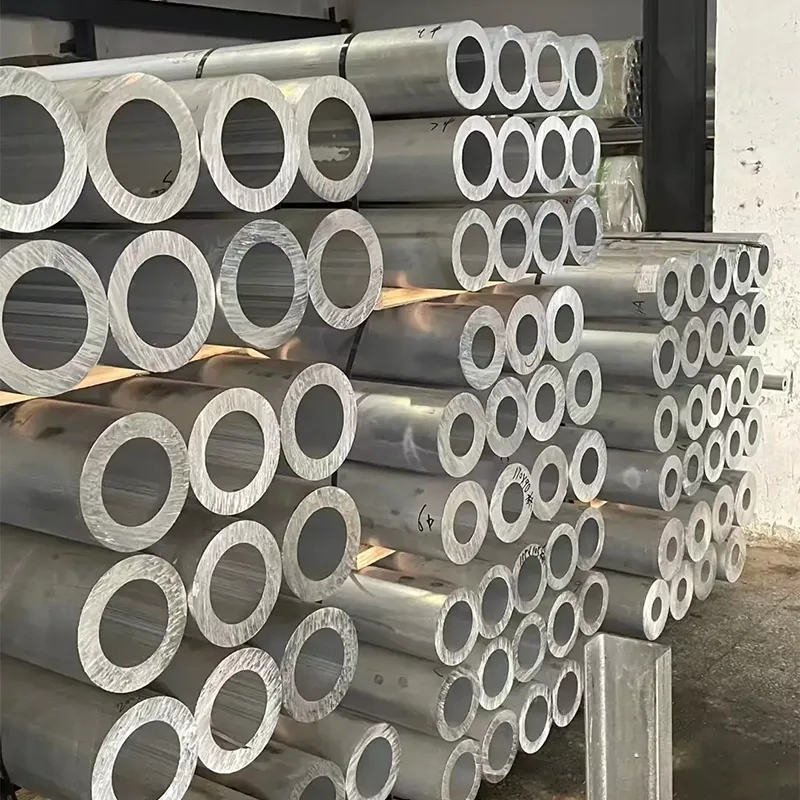

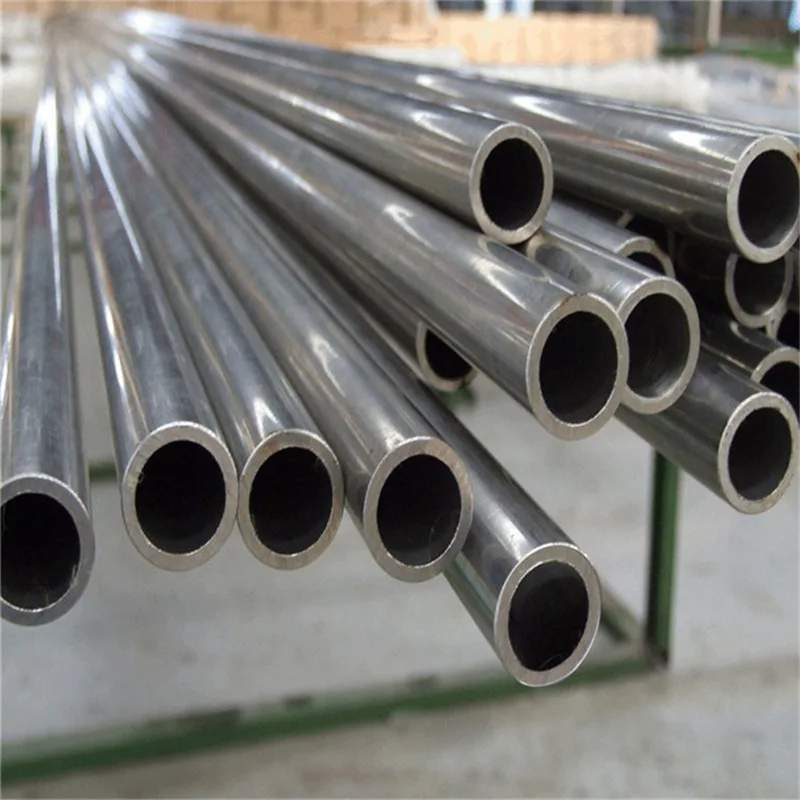

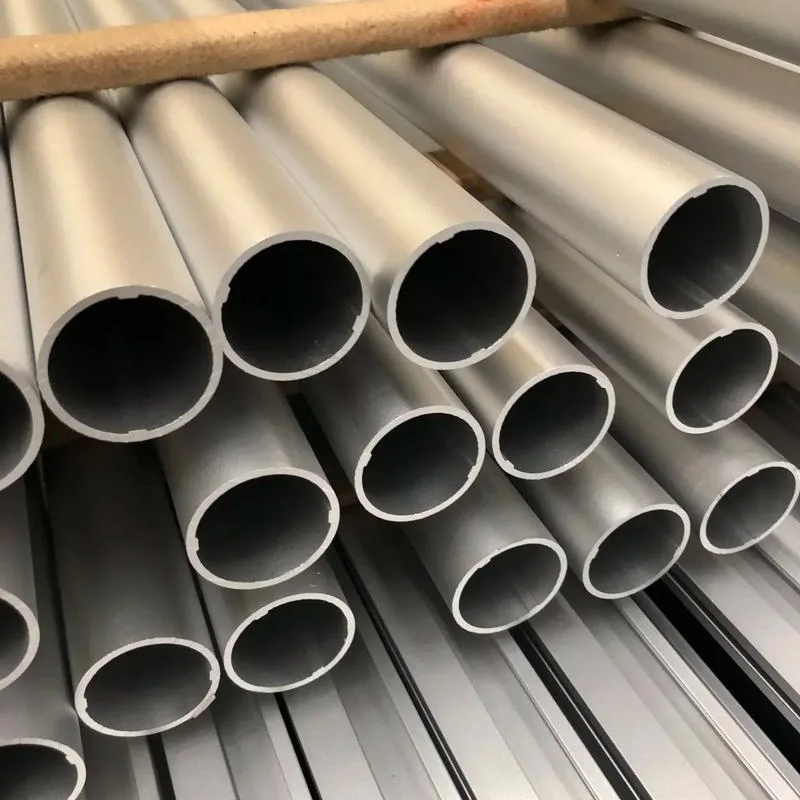

5083 Aluminum Tube

5083 belongs to the 5-series aluminum-magnesium alloy for rust prevention. It cannot be heat-treated for strengthening and has a magnesium content of 4.0%~4.9%. Its core advantages are high corrosion resistance, easy welding, and excellent low-temperature toughness. It is mainly used in marine pipelines, marine engineering components, chemical corrosion-resistant pipelines, cryogenic storage tanks, pressure vessels, and lightweight automotive structures—scenarios requiring both corrosion resistance and welding.

What are the differences between 5083, 5052, and 5A06 aluminum tubes?

All three belong to the 5-series aluminum-magnesium alloy for rust prevention. The differences in their core performance are determined by the magnesium content gradient, clearly distinguishing their positioning and applicable scenarios. 5052 has the lowest magnesium content (2.2%~2.8%), offering the best plasticity and deep-drawing formability, but also the lowest strength. Its tensile strength in the H32 state is approximately 230~280 MPa, making it suitable for complex-shaped, lightly stressed components such as fuel tanks and sheet metal enclosures.

5083 has a medium magnesium content (4.0%~4.9%), achieving an excellent balance between corrosion resistance, weldability, and structural strength. Its tensile strength in the H112 state can reach 270~350 MPa, with a weld strength retention rate exceeding 85%. It is the most versatile grade in marine engineering and corrosion-resistant pipeline applications.

5A06 has a magnesium content of 5.8%~6.8%, belonging to high-magnesium rust-resistant aluminum. It boasts the highest strength, with a tensile strength of 315~350 MPa in the H112 state, and offers the best weld joint performance, with a weld strength retention rate exceeding 90%. It is suitable for heavy-duty welded structures and high-load corrosion-resistant applications. For light-duty corrosion protection in deep drawing, choose 5052; for general marine welding applications, choose 5083; and for heavy-duty welding structures, choose 5A06.

How is the corrosion resistance of 5083 aluminum tubing? Can it be used long-term near the sea?

The corrosion resistance of 5083 aluminum tubing is among the top tier of rust-resistant aluminum, which is its core advantage. Thanks to the solid solution effect of a suitable amount of magnesium, a dense and stable oxide film can spontaneously form on the alloy surface, resulting in extremely low risks of intergranular corrosion and pitting corrosion. Its resistance to seawater, salt spray, and atmospheric corrosion is far superior to 2-series and 7-series high-strength aluminum, and also significantly stronger than 6-series general-purpose structural aluminum. In marine environments near the sea, the bare material can be used stably for a long time without rapid rusting and cracking, making it suitable for coastal buildings, outdoor equipment pipelines, and other scenarios. If long-term immersion in seawater or exposure to high salt spray and severe corrosion conditions is required, the oxide film on the bare material will still slowly wear away. It is recommended to combine it with hard anodizing and anti-corrosion spraying treatments to further isolate corrosive media and extend its service life. It should be noted that 5083 is not resistant to strong acids, strong alkalis and other highly corrosive media. In such cases, it is not recommended to use the bare material directly, and special anti-corrosion treatment is required.
