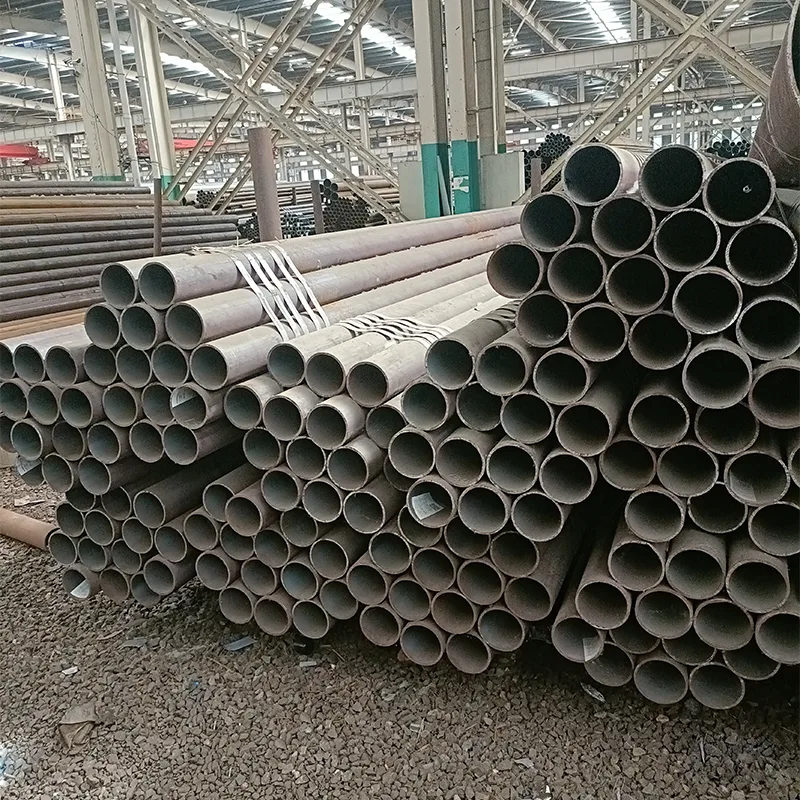

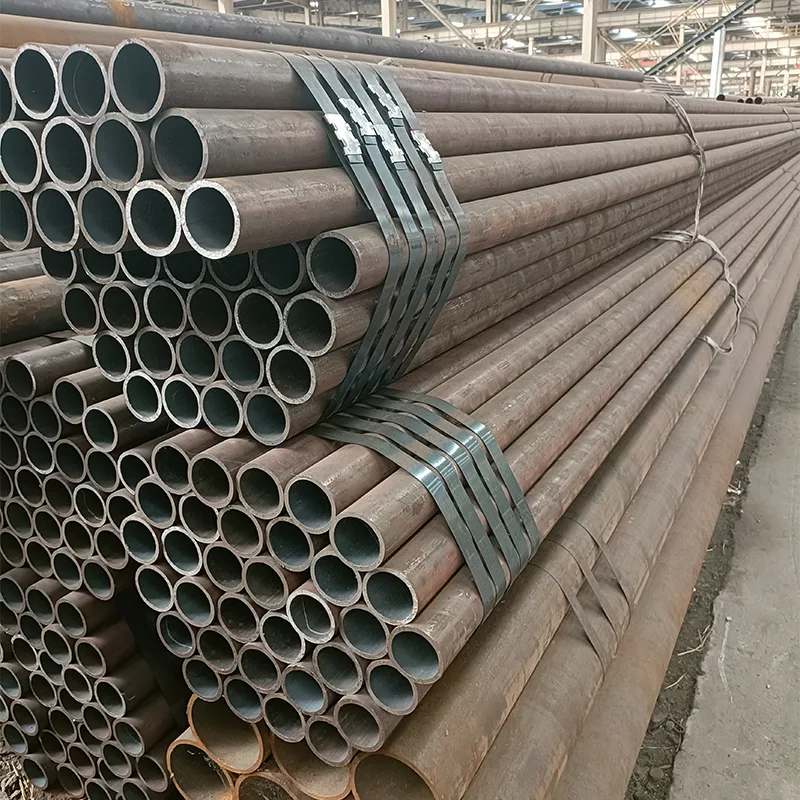

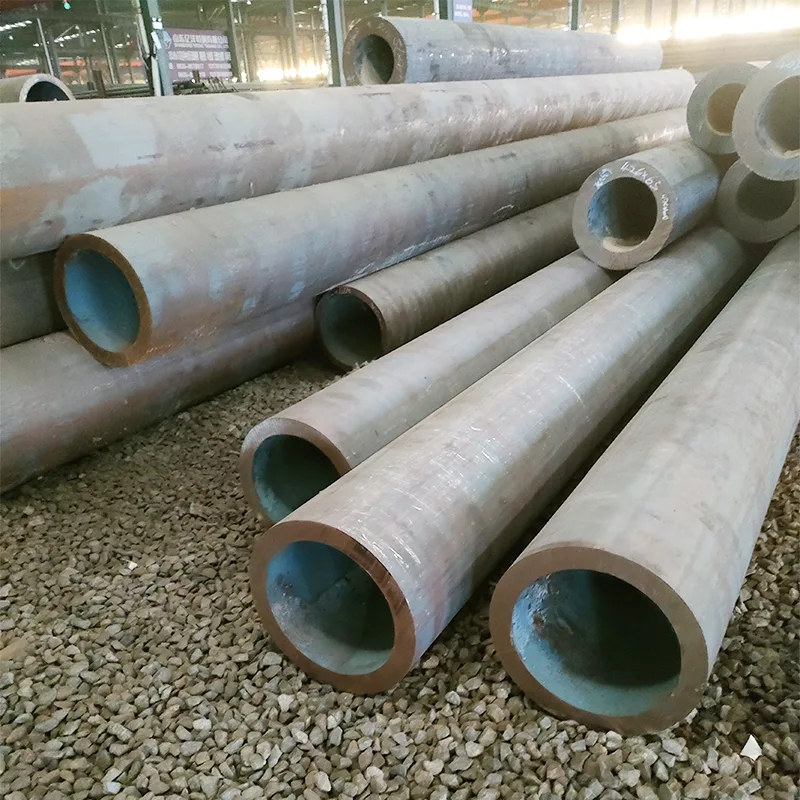

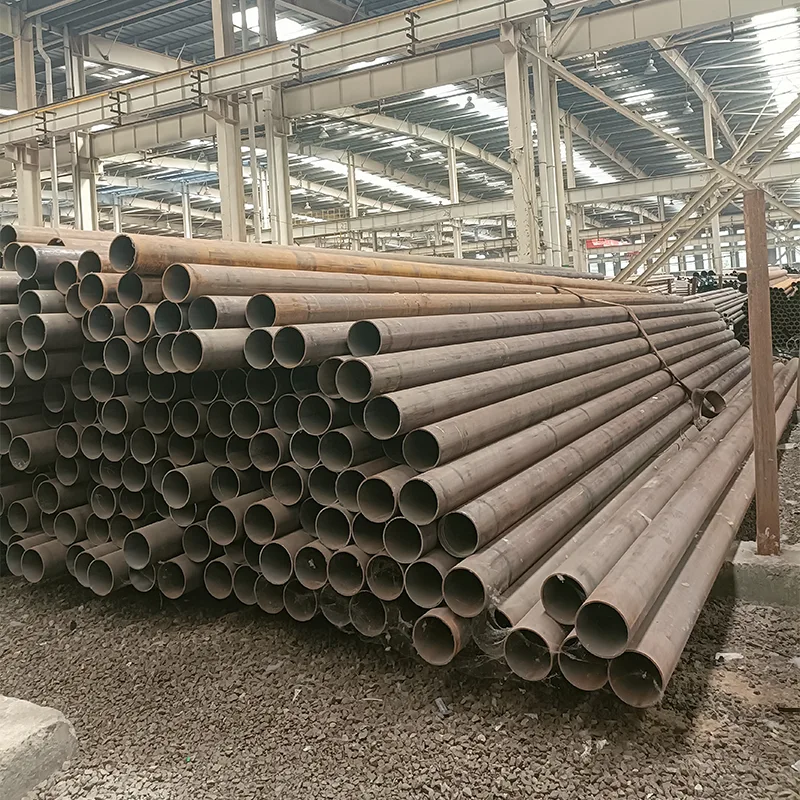

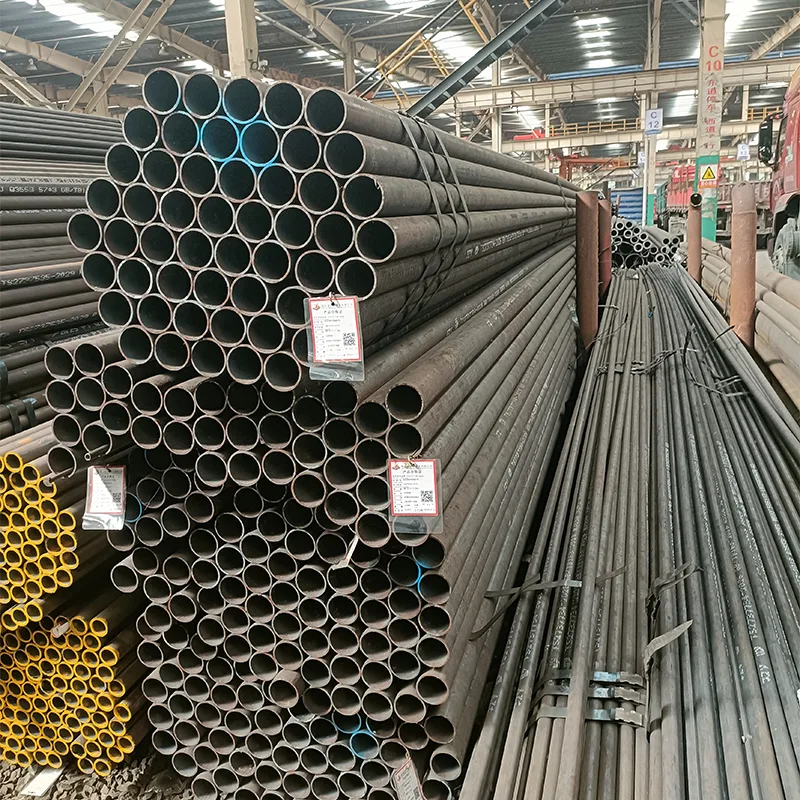

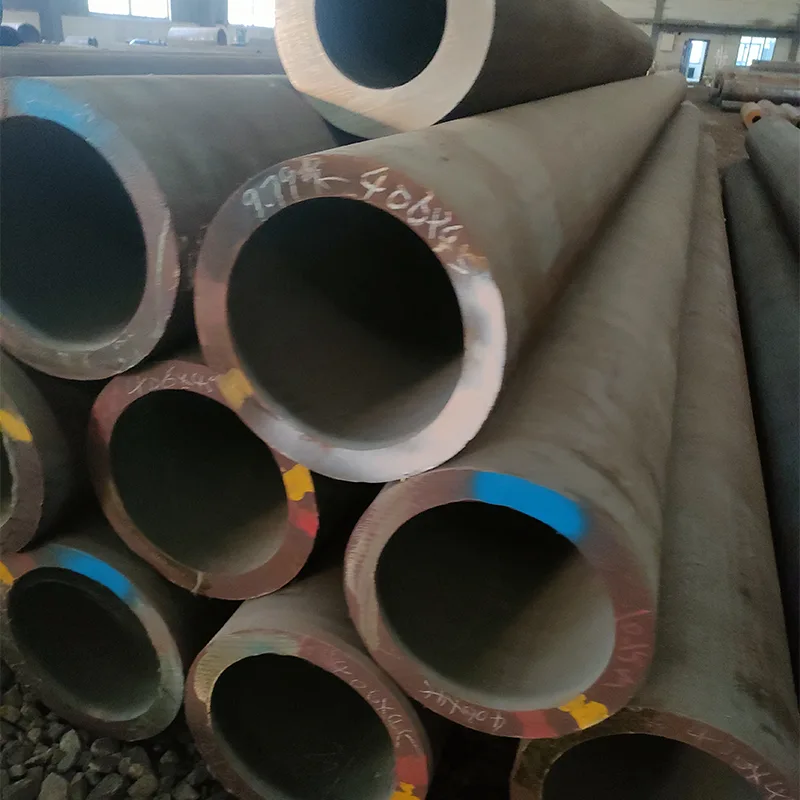

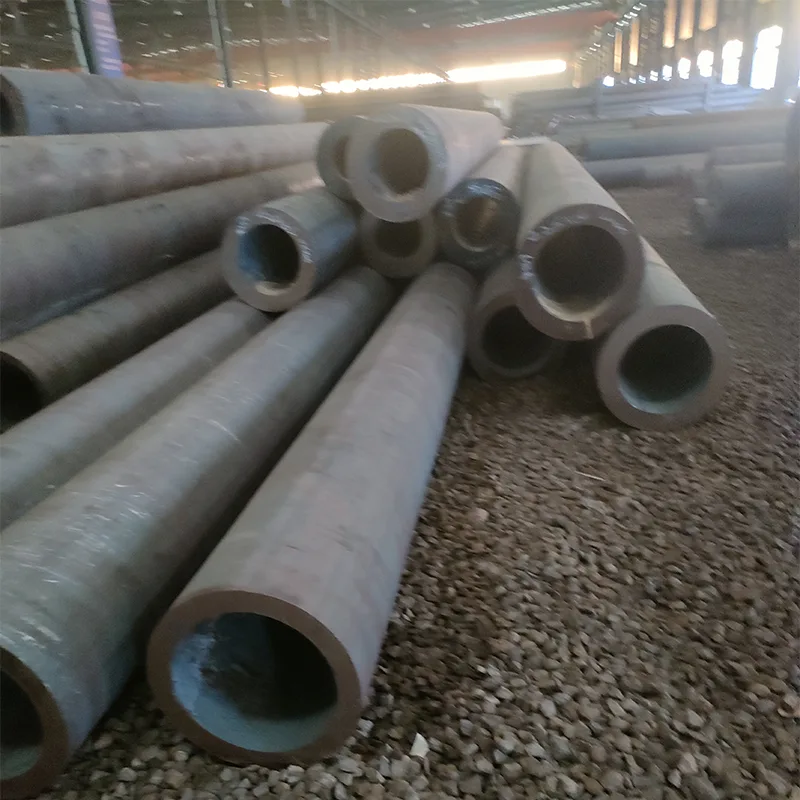

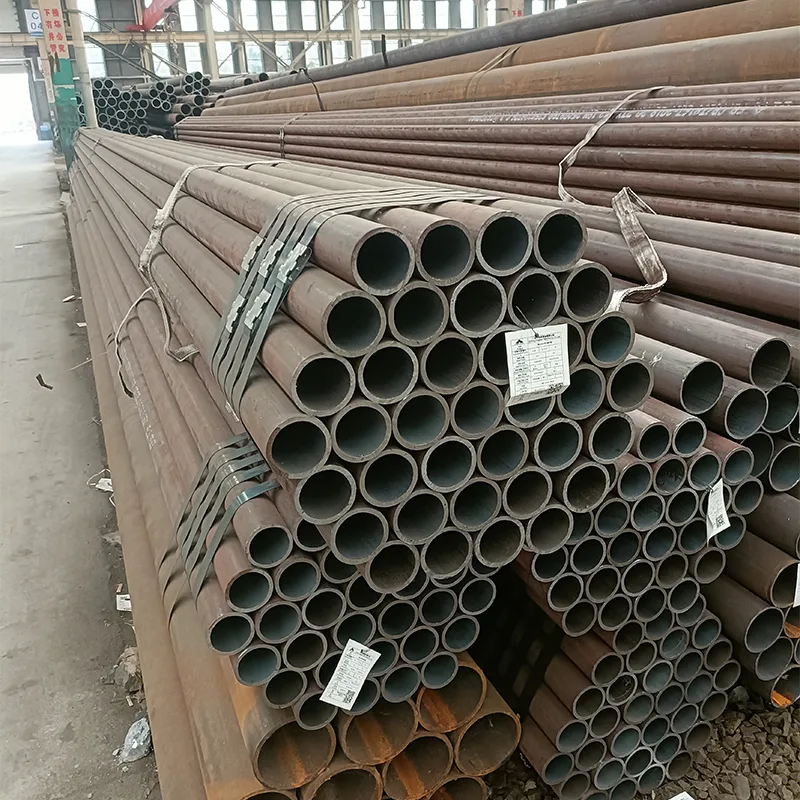

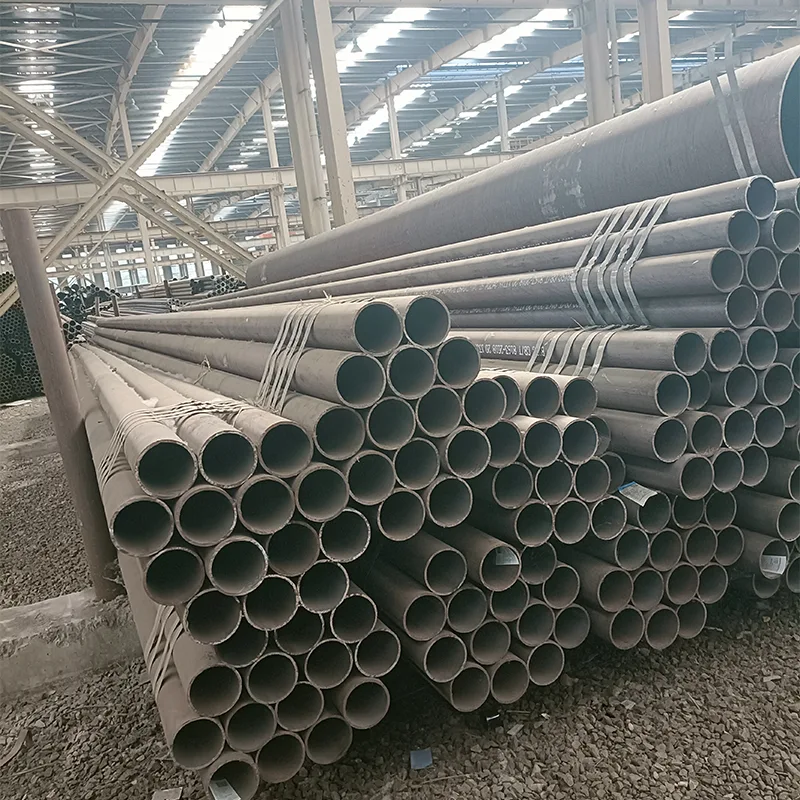

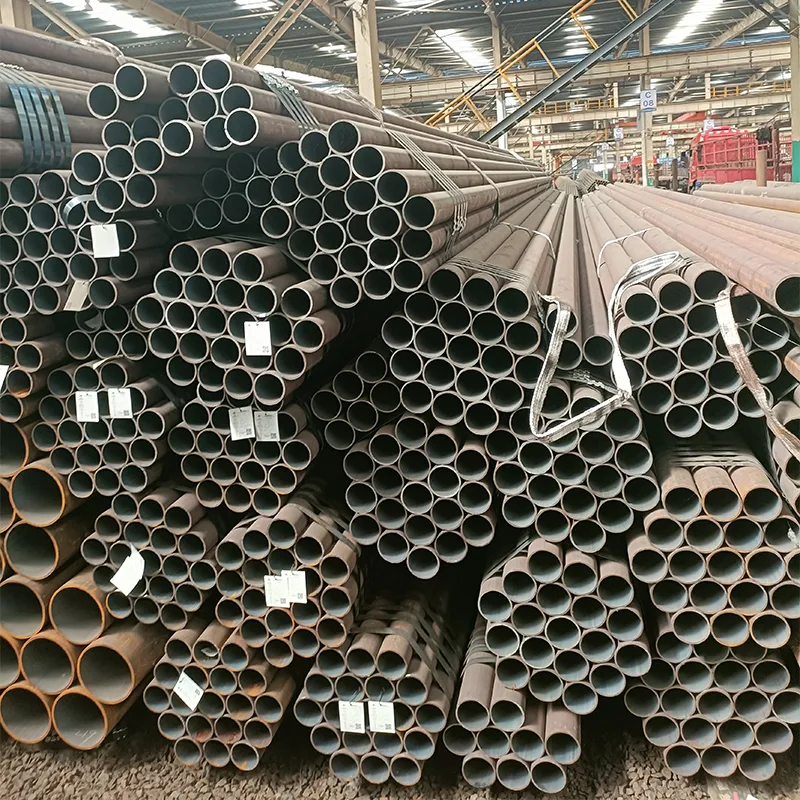

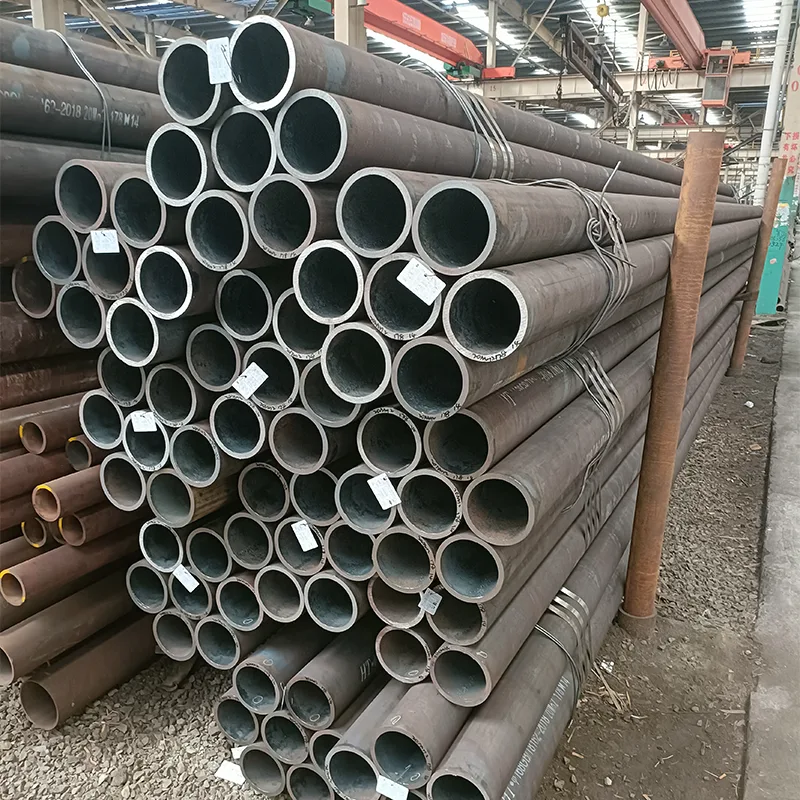

Cold-Drawn Seamless Steel Pipes

Cold-drawn seamless steel pipes are cold-worked seamless tubes formed at room temperature using molds. Using hot-rolled seamless rough tubes as the base material, the core process flow is as follows:

1. Pre-treatment: The rough tube is first pickled to remove surface oxide scale, then subjected to phosphating and saponification lubrication treatment to reduce drawing friction resistance and avoid scratches on the tube wall.

2. Cold Drawing Forming: After the tube end is reduced in diameter and headed, it is inserted into a mold and drawn using a cold drawing machine. The outer diameter and wall thickness are controlled synchronously by the outer sizing die and the inner core die. The target size can be gradually achieved through multiple drawing passes, with the deformation per pass controlled at 20%-40% to prevent tube cracking.

3. Annealing Treatment: Intermediate annealing is performed between multiple drawing passes to eliminate work hardening and restore material plasticity. The finished product undergoes final annealing to adjust mechanical properties and remove processing stress.

4. Finishing and Inspection: After straightening, end trimming, non-destructive testing, and full dimensional inspection, the tube is stored in the warehouse. High-precision products can undergo an additional bright finishing process.

Core Advantages:

1. Extremely High Dimensional Accuracy: The outer diameter tolerance of conventional cold-drawn seamless steel tubes can be controlled within ±0.1mm, and high-precision grades can reach ±0.05mm. The wall thickness deviation is ≤5%, far superior to hot-rolled seamless tubes. The roundness and straightness are regular, allowing direct adaptation to precision assembly and significantly reducing secondary processing allowances.

2. Excellent Surface Quality: Cold-drawn seamless steel pipes have smooth inner and outer walls free of oxide scale, pitting, and scars, with a surface roughness of Ra0.8~1.6μm. This results in low fluid transport resistance, minimal scale buildup, and facilitates subsequent electroplating, corrosion protection, and other surface treatments.

3. Stable Mechanical Properties: Cold working refines the grain size, leading to a denser internal structure and superior strength and fatigue resistance compared to hot-rolled pipes. Annealing ensures uniform and controllable performance, making it suitable for subsequent heat treatment processes such as tempering and carburizing.

4. Flexible Specification Coverage: Capable of producing small-diameter, thin-walled, and ultra-thin-walled seamless pipes that are difficult to achieve with hot rolling processes. Custom-designed pipes with irregular cross-sections are also available, covering specific and specialized specifications.

5. High Material Utilization: Stable dimensional accuracy minimizes cutting wear during customer machining, effectively reducing overall material costs.

What dimensional accuracy can cold-drawn seamless steel pipes achieve, and can they meet precision assembly requirements?

The accuracy of conventional cold-drawn finished products is consistently at H9~H10 grade, with an outer diameter tolerance of ±0.1mm and a wall thickness deviation of ≤5%. High-precision drawn products can reach H8 grade, fully adaptable to the needs of hydraulic and mechanical precision assembly. A dimensional inspection report is included with each shipment.

What supporting deep processing services can cold-drawn seamless steel pipe manufacturers provide?

Cold-drawn seamless steel pipe manufacturers offer one-stop supporting processing, covering fixed-length cutting, pipe end chamfering, threading, beveling, internal honing, annealing/tempering heat treatment, and galvanizing for corrosion protection. Finished products are ready for use upon delivery, eliminating secondary processing costs for customers.
