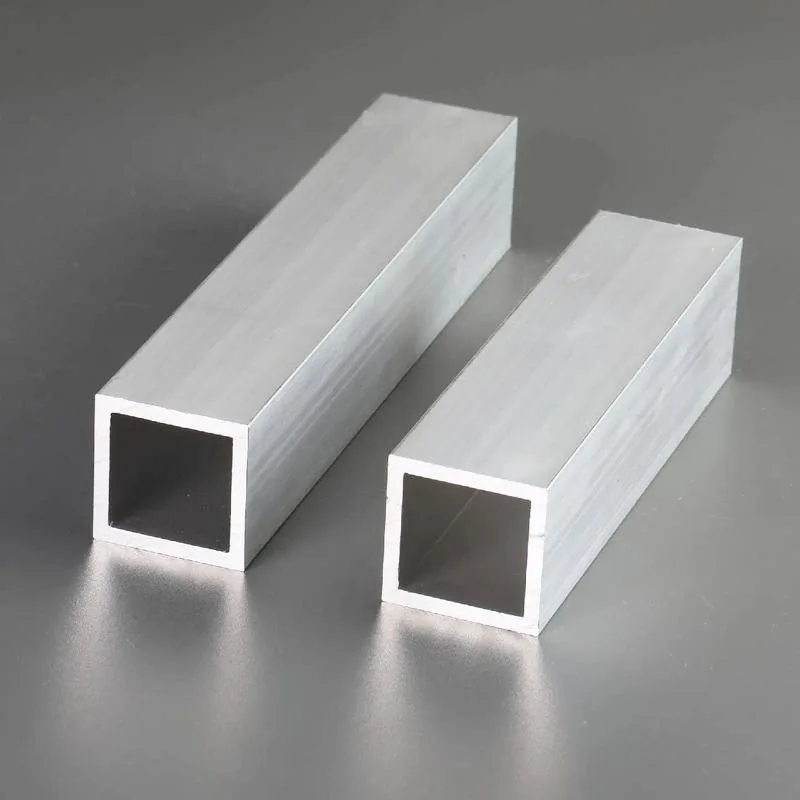

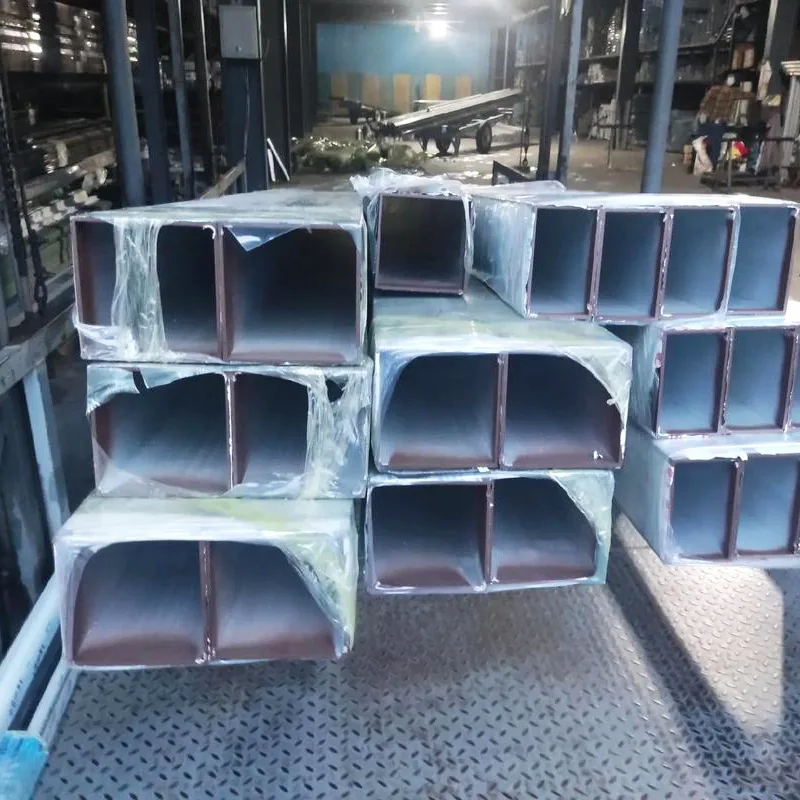

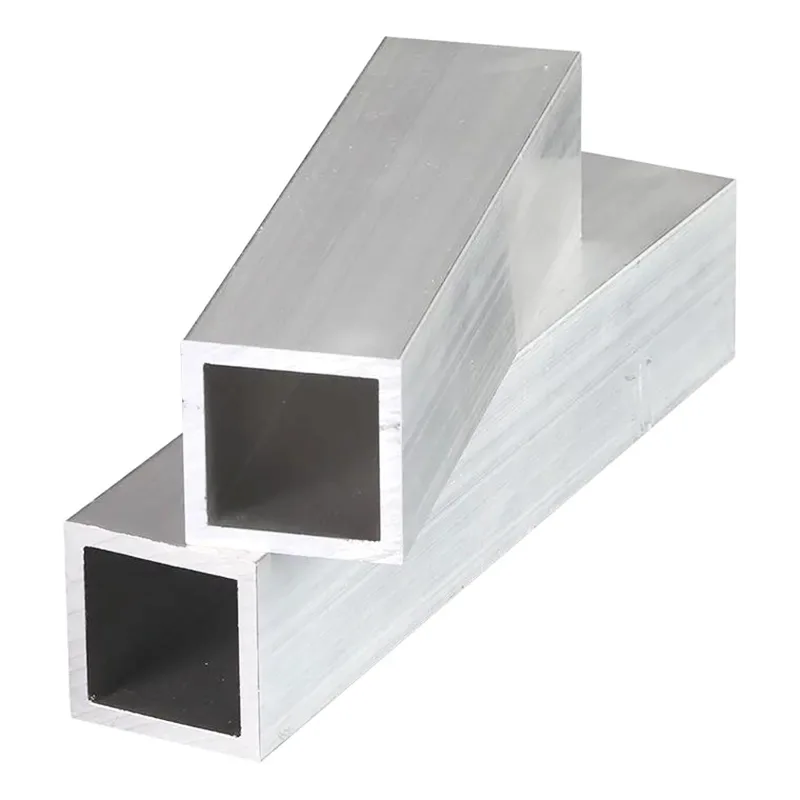

5083 Aluminum Square Tube
5083 Aluminum Square Tube suppliers offer standard cross-sections of 10-220mm × 10-220mm, wall thicknesses of 0.8-25mm, and standard lengths of 3-6m, with custom cutting available upon request. Common tempers are O/H111/H112/H32/H34, and non-standard/large-diameter customization is supported, suitable for high-strength corrosion-resistant applications such as marine engineering, shipbuilding, and pressure vessels.
5083 Aluminum Square Tube is an Al-Mg series non-heat-treatable, rust-resistant aluminum alloy. Its core advantages are high corrosion resistance, excellent weldability, and moderate strength. With a density of approximately 2.66 g/cm³, it exhibits excellent low-temperature performance, making it a preferred material for marine and outdoor engineering.
Core Applicable Scenarios (Classified by Field)
|
Application Areas |
Typical Applications |
Core Advantages |
|
Marine Engineering |
Ship hull structures, decks, bulkheads, offshore platform supports, jacket structures |
Seawater corrosion resistant with a lifespan exceeding 20 years, weight reduction of 30%+, and good post-weld strength retention. |
|
Transportation |
High-speed rail/subway car structures, refrigerated car bodies, oil tankers/LPG storage tanks, large tank trucks |
Lightweight, low-temperature resistant (no brittle transition at -196℃), and corrosion resistant. |
|
Pressure Vessels |
High-pressure gas cylinders, fire-fighting storage tanks, cryogenic containers |
Balanced strength and toughness, reliable welded joints, compliant with ASME and other standards. |
|
Building Structures |
Curtain wall supports, coastal bridge railings, outdoor steel structure replacements |
Strong weather resistance, salt spray resistant, and low maintenance costs. |
|
Other |
Military armor, aerospace welded components, environmental protection equipment (sewage treatment/exhaust gas treatment) |
Excellent overall performance, adaptable to extreme environments. |
Common Conditions and Mechanical Properties Reference
|
State |
Tensile strength (MPa) |
Yield strength (MPa) |
Elongation (%) |
Applicable processing scenarios: |
|
O (Annealed) |
270-310 |
110-140 |
18-22 |
Deep drawing, complex forming, pre-welding treatment |
|
H111 |
290-330 |
140-170 |
15-18 |
General structural parts, balancing strength and plasticity |
|
H32/H34 |
310-380 |
210-280 |
10-15 |
High-strength structures, requiring certain cold working capabilities |
Manufacturer Selection Recommendations
1. Outdoor scenarios requiring resistance to seawater/salt spray and welding (e.g., offshore platforms, ships) → 5083 is the first choice.
2. Low-temperature environments and pressure vessels (e.g., liquid nitrogen storage tanks, refrigerated trucks) → 5083 performs excellently.
3. For those seeking ultimate machinability → Consider 6061 (heat-treated for enhanced strength, smoother machining).
4. For those requiring higher strength → Consider 7075 (but with poor weldability and weak corrosion resistance).
