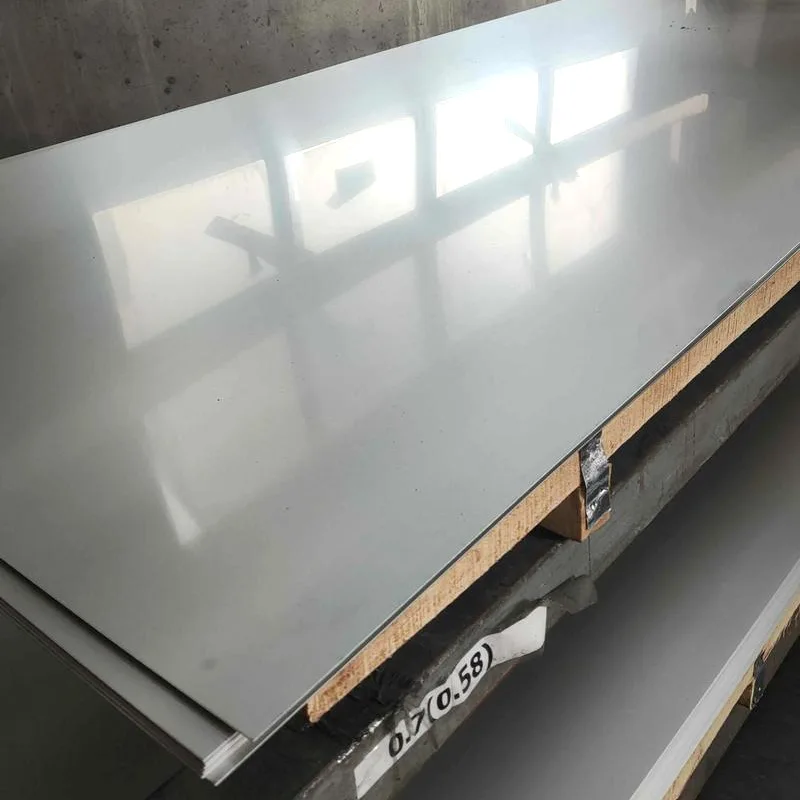

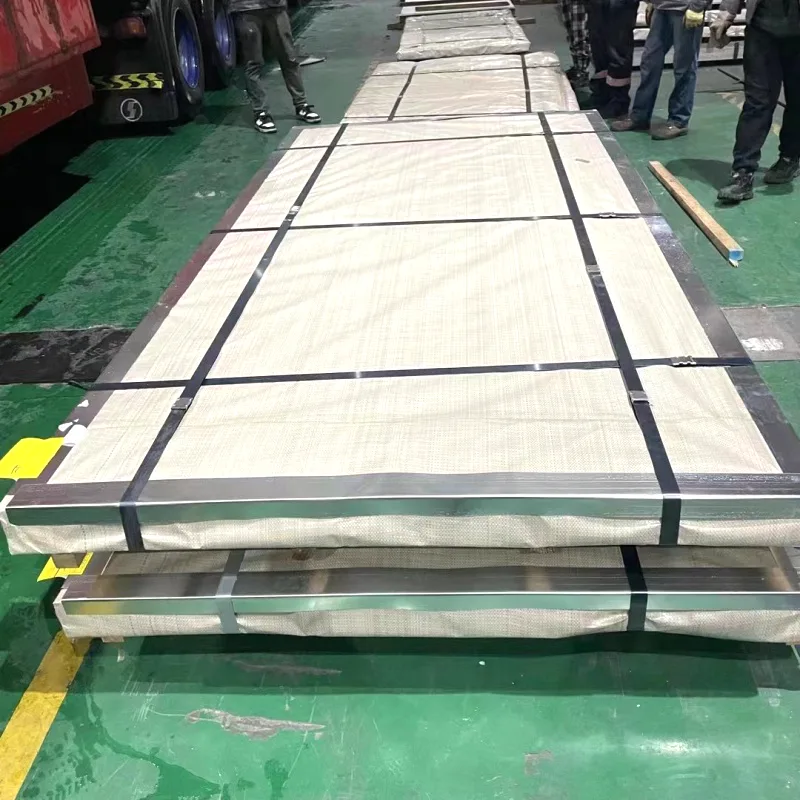

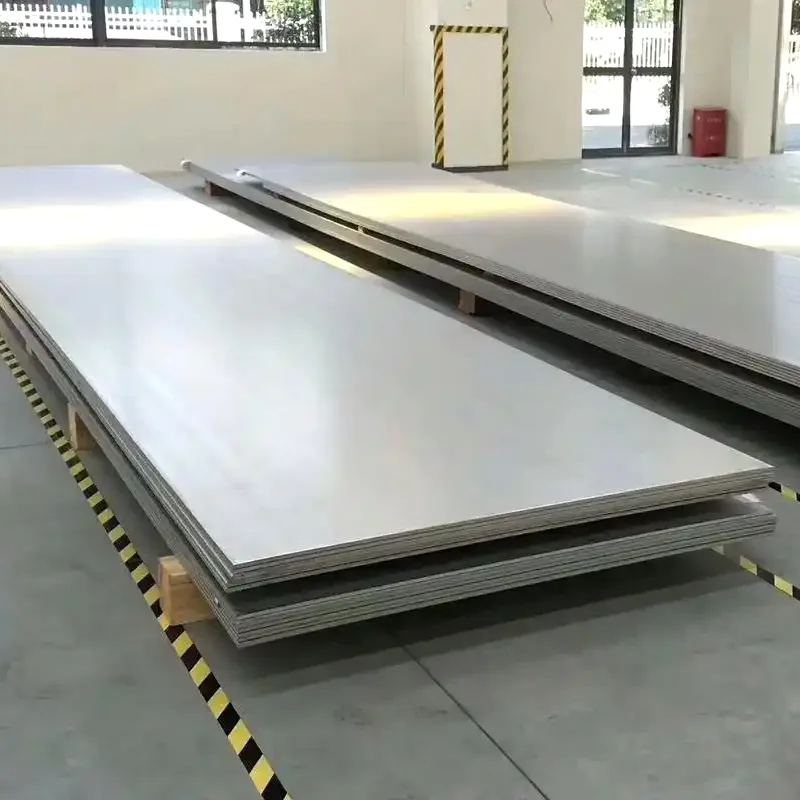

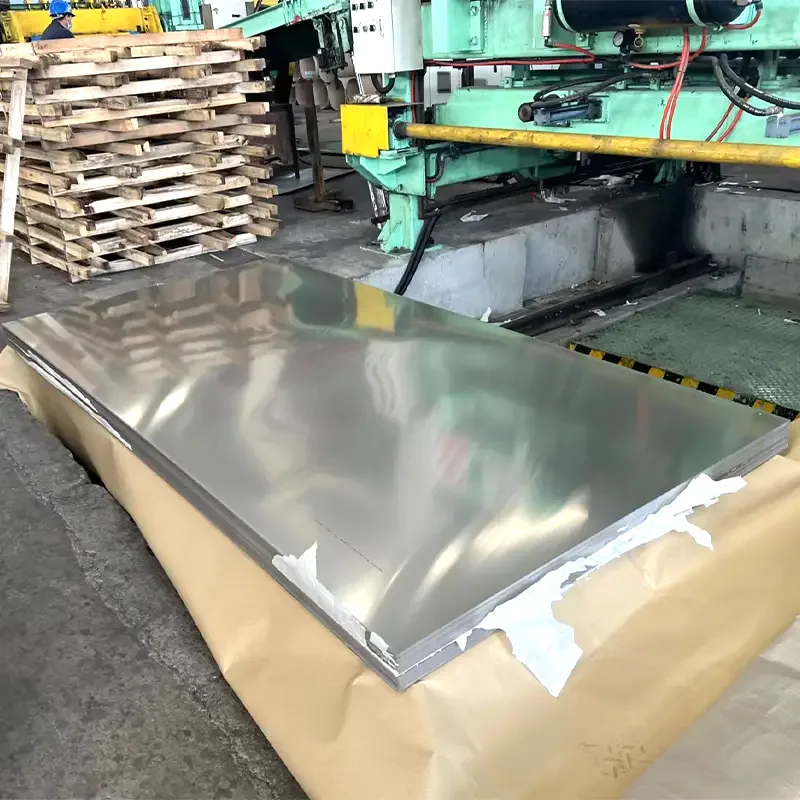

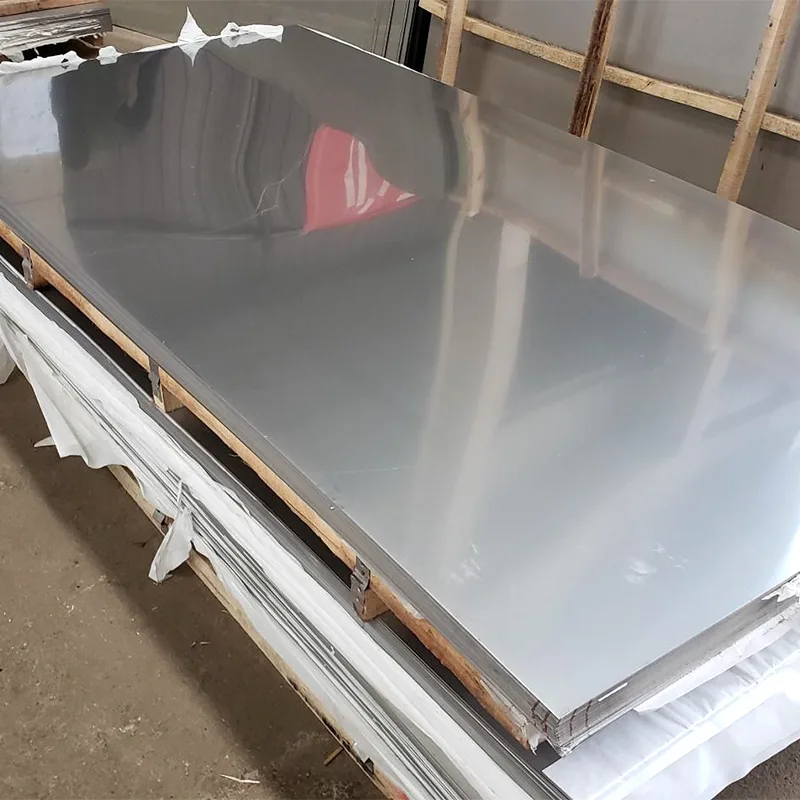

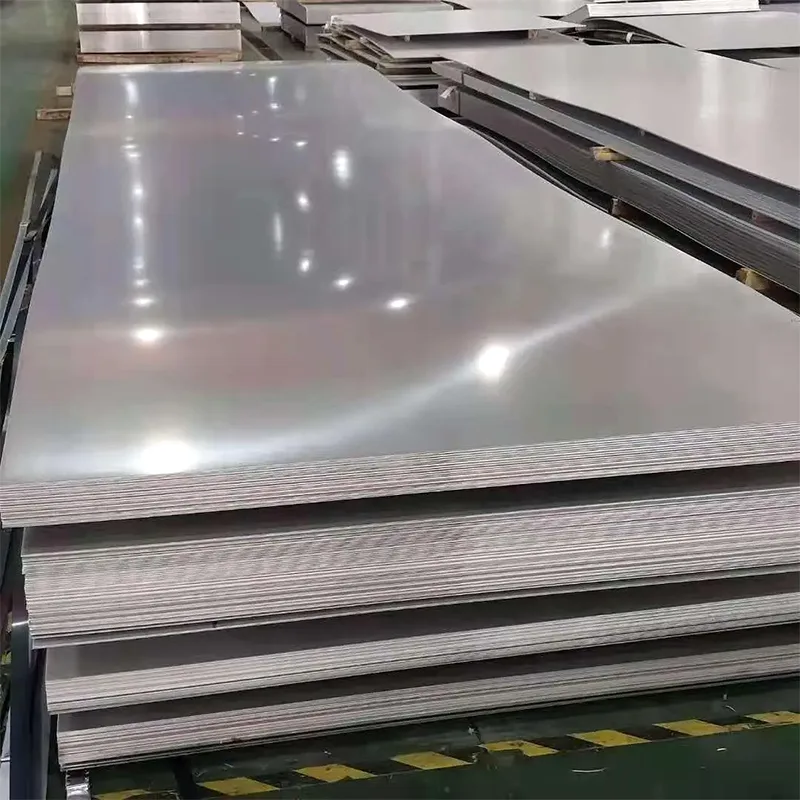

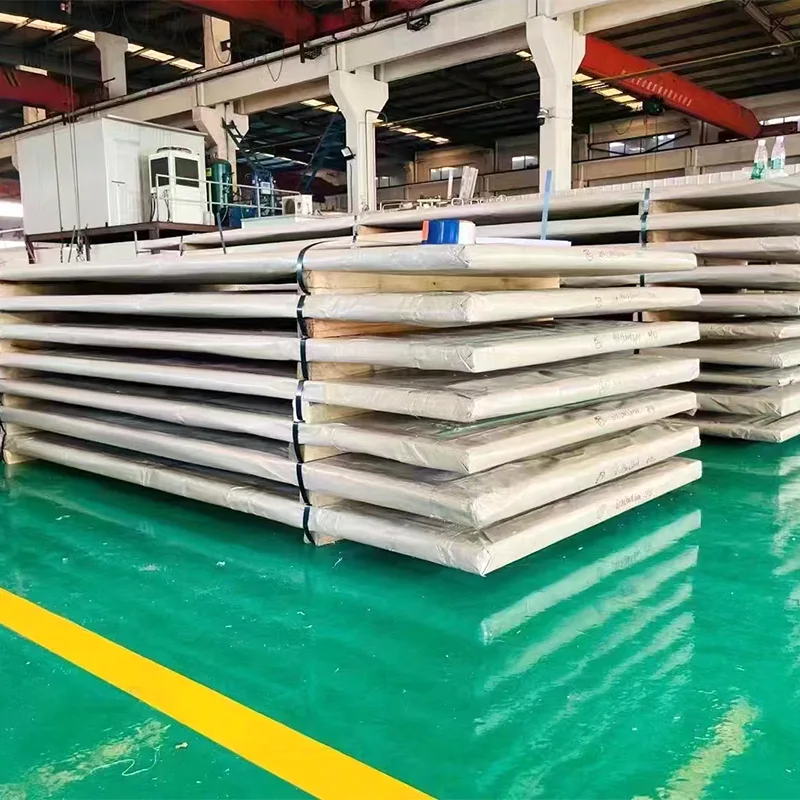

310s Stainless Steel Sheet
Manufacturers of 310S stainless steel sheets possess a comprehensive material testing system, providing original factory warranties and spectral analysis reports. They offer stable supply and efficient delivery, capable of handling large-scale high-temperature engineering bulk orders as well as small-batch customization needs. Their comprehensive strength makes them suitable for various high-temperature industrial applications.
310S Stainless Steel Sheet is a stainless steel plate primarily alloyed with high chromium (Cr) and high nickel (Ni). It exhibits excellent high-temperature oxidation resistance and corrosion resistance, making it suitable for use in extreme high-temperature environments.
Chemical Composition Characteristics
Chromium (Cr): Approx. 24–26%
Nickel (Ni): Approx. 19–22%
Carbon (C): ≤ 0.08% (A key low-carbon characteristic of 310S)
The low-carbon design significantly minimizes carbide precipitation, thereby enhancing high-temperature corrosion resistance.
Why is 310S stainless steel sheet so heat-resistant?
Its long-term continuous operating temperature can reach 1100-1150℃, and its short-term peak temperature resistance can stably support 1200℃. It exhibits outstanding resistance to oxidation and creep at high temperatures, and is not prone to deformation, cracking, or peeling. This high-temperature resistance stems from a special alloy ratio: high chromium content allows for the rapid formation of a dense and stable chromium oxide protective film on high-temperature surfaces, isolating oxygen corrosion; high nickel content significantly improves the steel's thermal stability, creep resistance, and low-temperature toughness; while the low-carbon design (C≤0.08%) avoids the risk of intergranular corrosion at high temperatures. This dual protection makes it suitable for extreme high-temperature conditions.
Core Chemical Composition Table
|
Chemical composition: |
Content Indicators: |
|
C (Carbon) |
≤0.08% |
|
Si (Silicon) |
≤1.50% |
|
Mn (Manganese) |
≤2.00% |
|
P (Phosphorus) |
≤0.045% |
|
S (Sulfur) |
≤0.030% |
|
Cr (Chromium) |
24.00-26.00% |
|
Ni (Nickel) |
19.00-22.00% |
Is 310S stainless steel sheet expensive? It belongs to the mid-to-high-end specialty stainless steel category, with a price significantly higher than ordinary stainless steel but lower than super austenitic stainless steels such as 904L. Overall, it is positioned as a "high-performance, high-cost" material. It contains 24-26% chromium and 19-22% nickel (far exceeding 304/316L), with these two precious metals accounting for over 70% of the cost. Fluctuations in nickel prices significantly impact the price.
Comparison of High-Temperature Material Alternatives
|
Material |
Long-term temperature resistance: |
Recommended Application Scenarios |
|
310S |
1100~1150℃ |
Long-term ultra-high temperature applications, furnace chambers, heat treatment fixtures |
|
309S |
950~1050℃ |
Medium-high temperature applications, general furnace bodies, flues; cost-effective choice |
|
316L |
600~750℃ |
Equipment requiring corrosion resistance and not operating at high temperatures |
