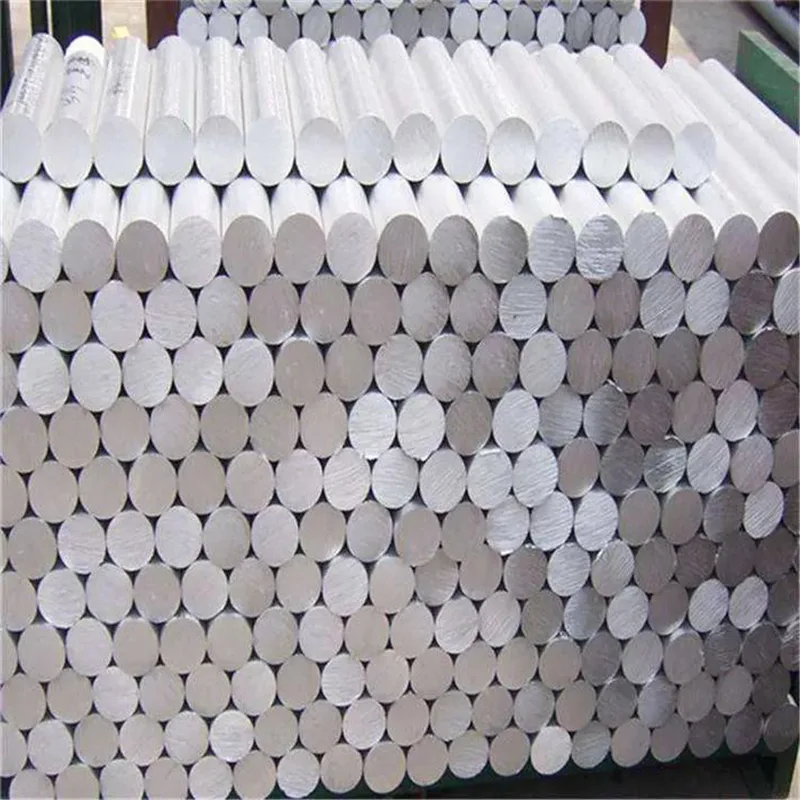

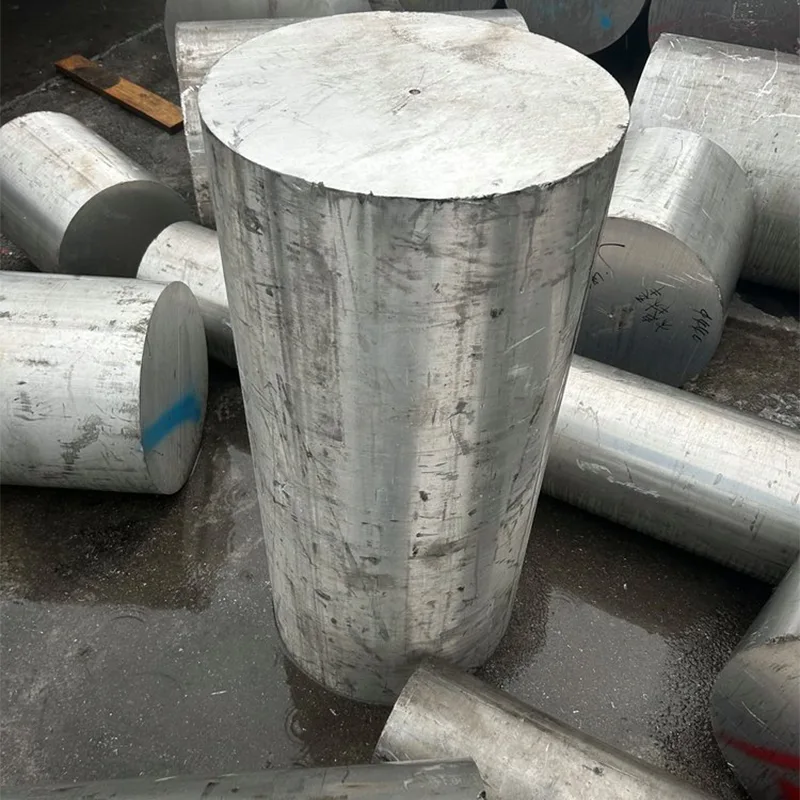

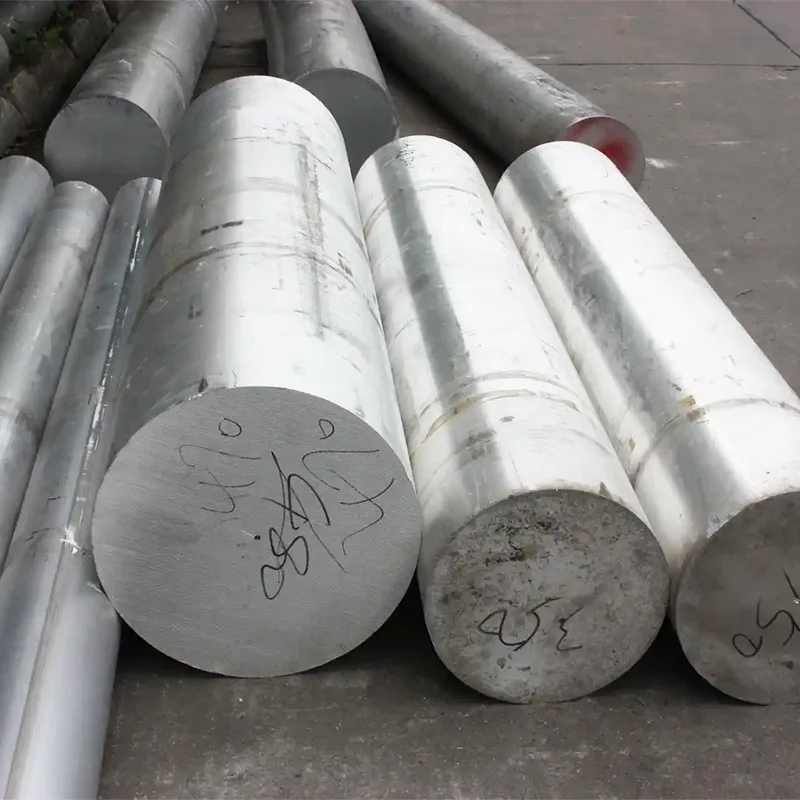

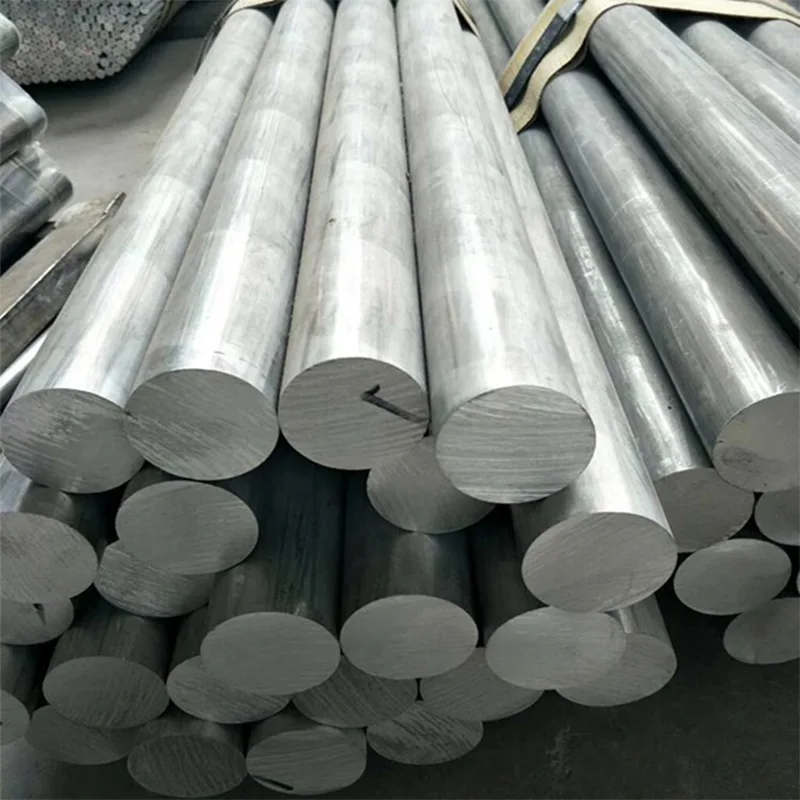

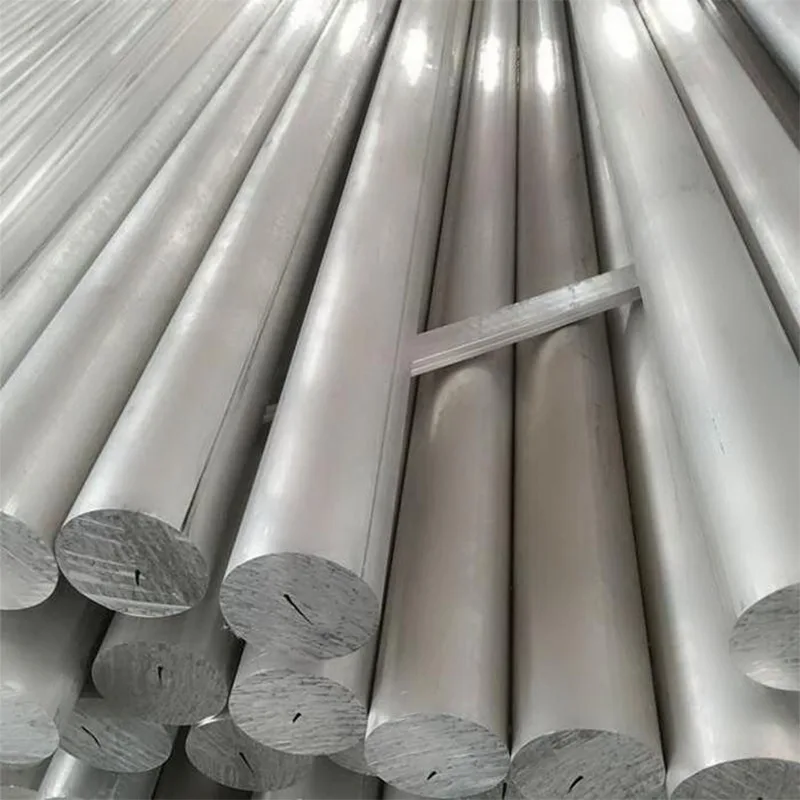

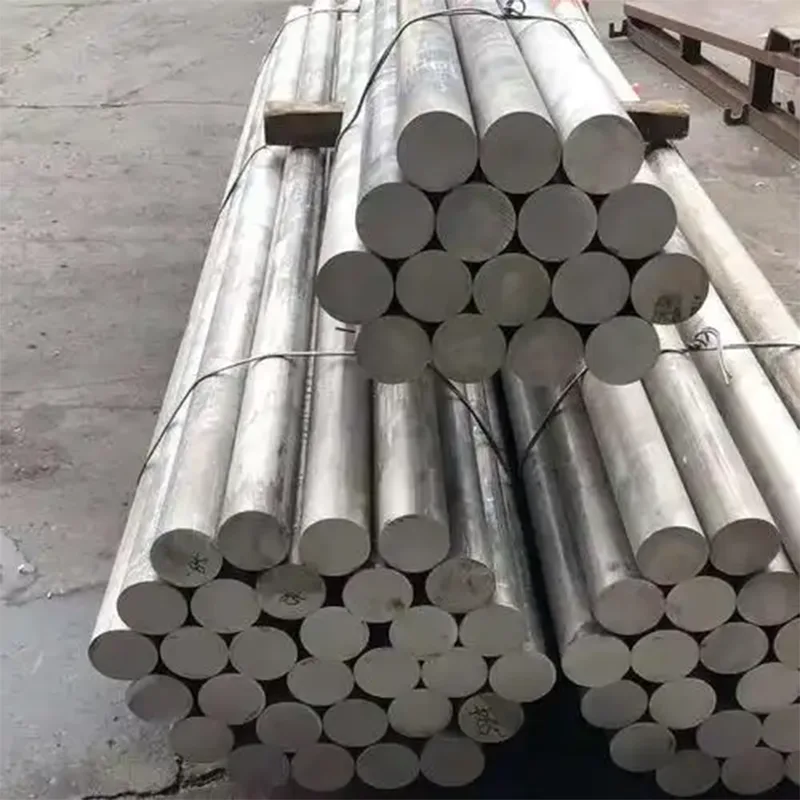

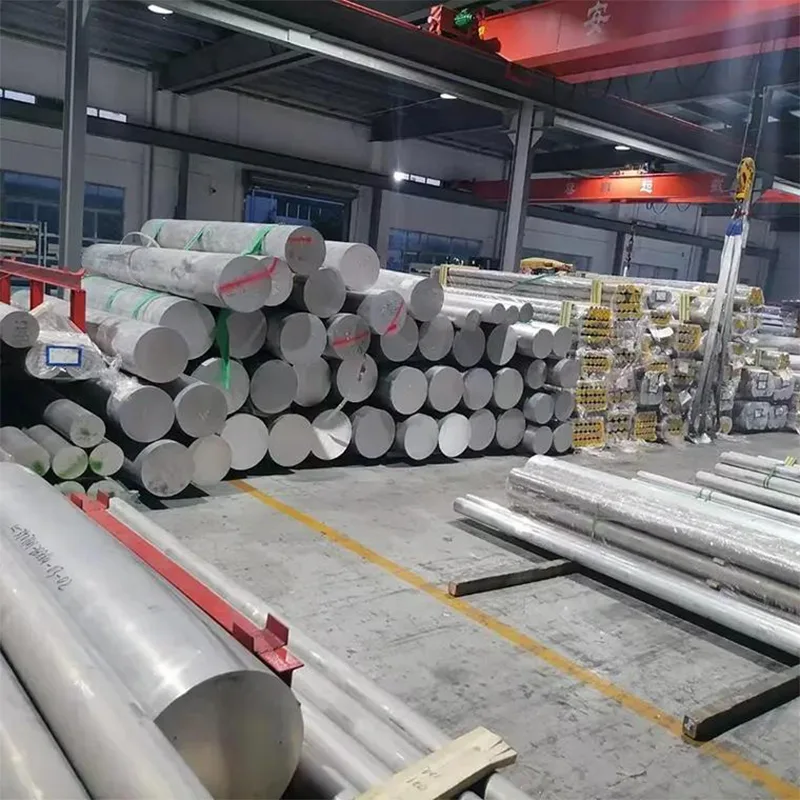

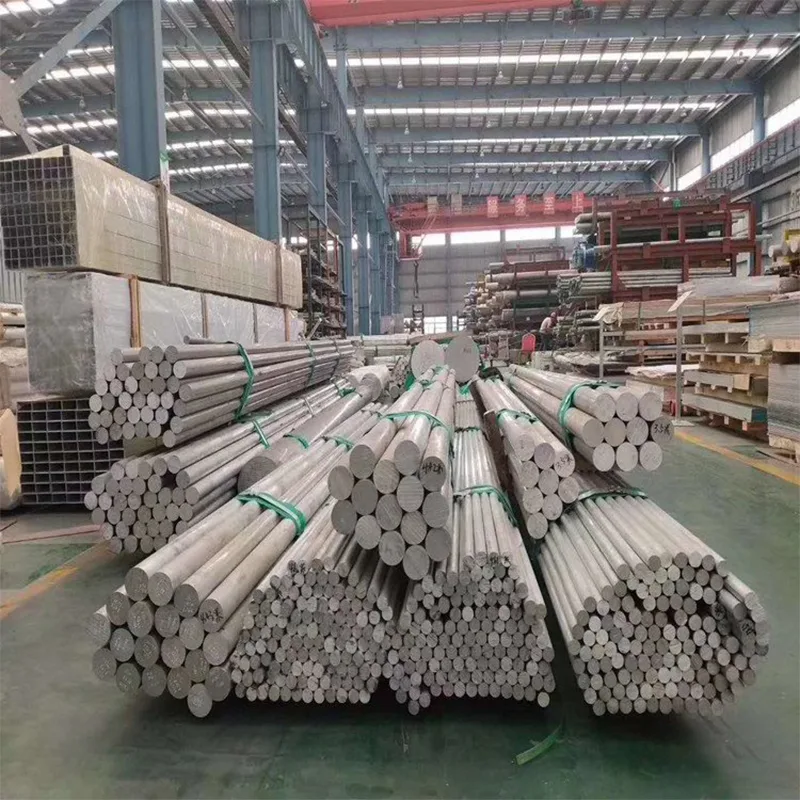

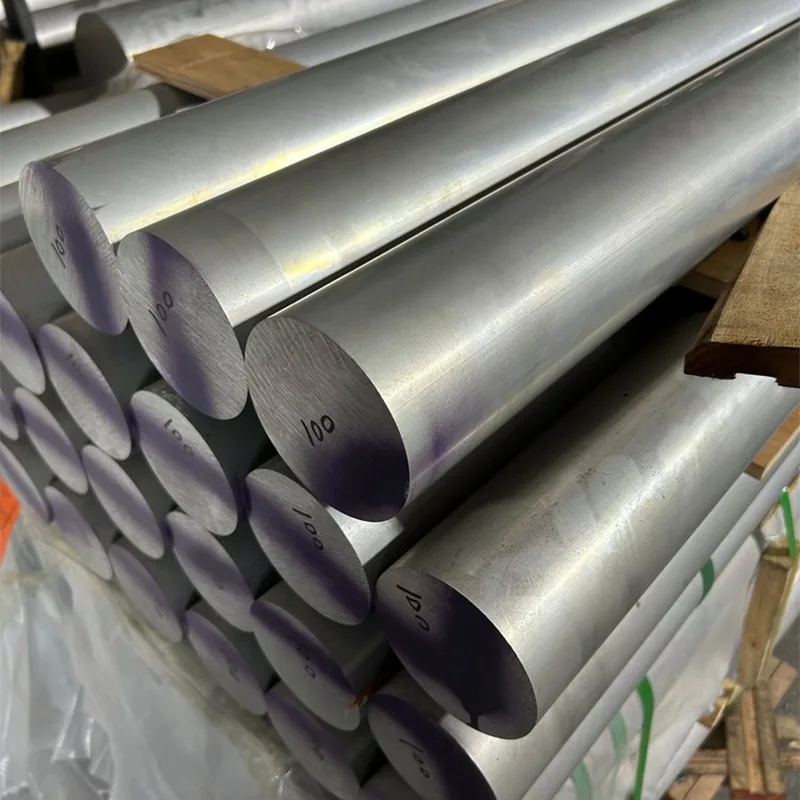

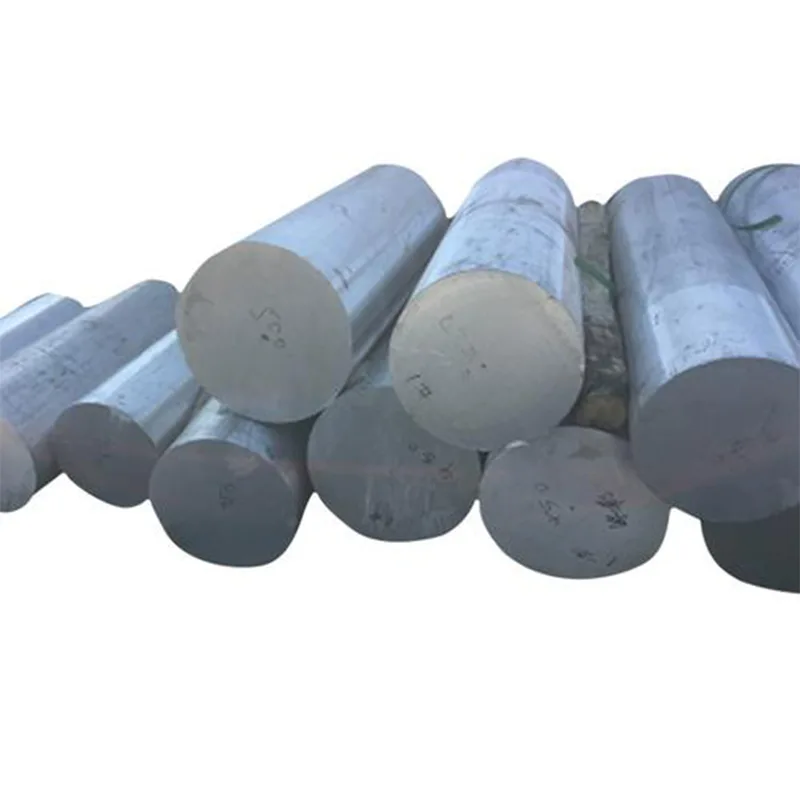

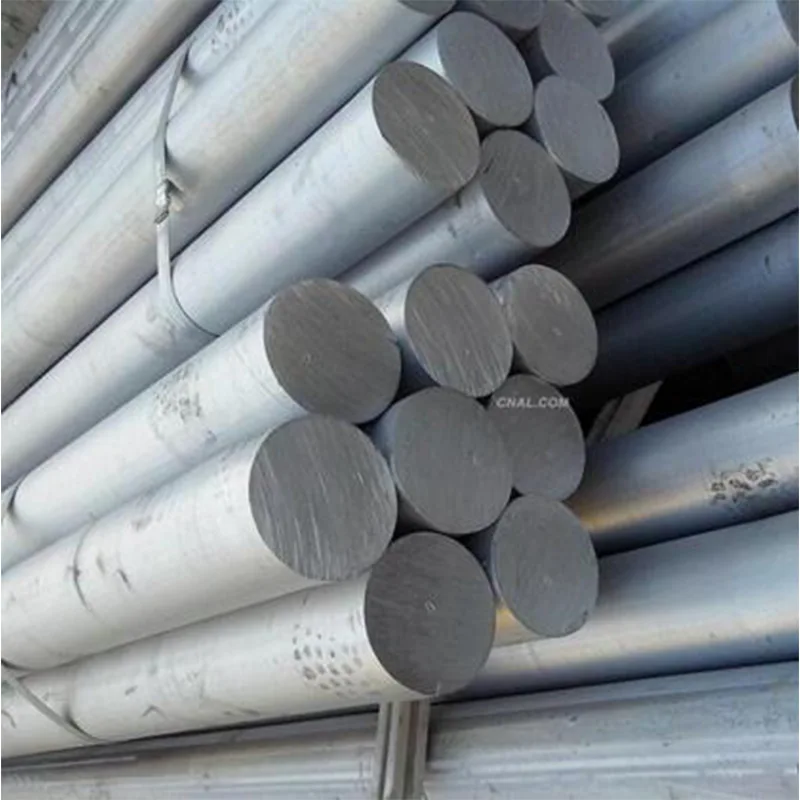

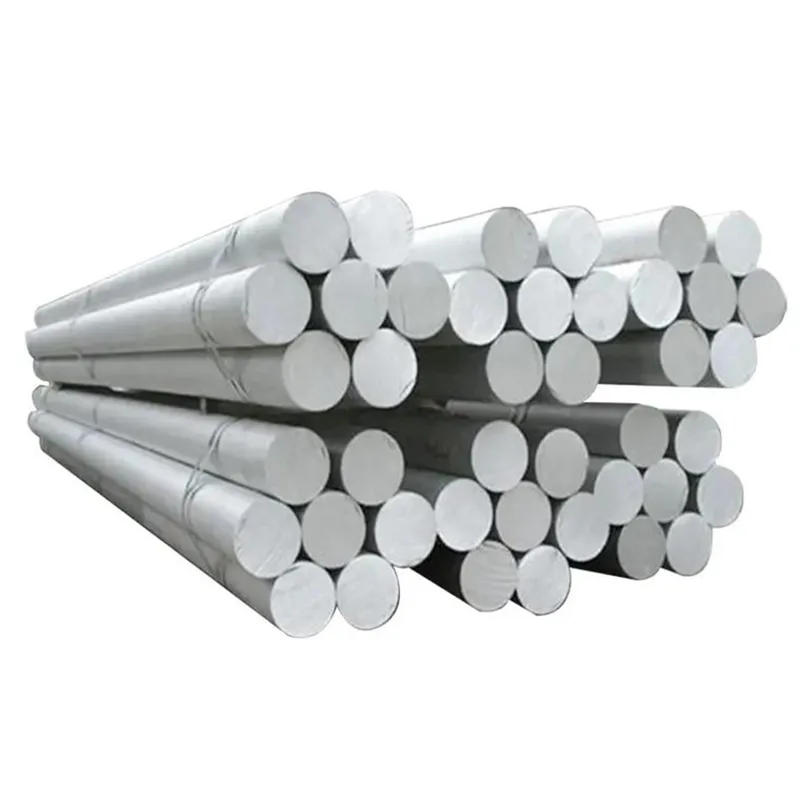

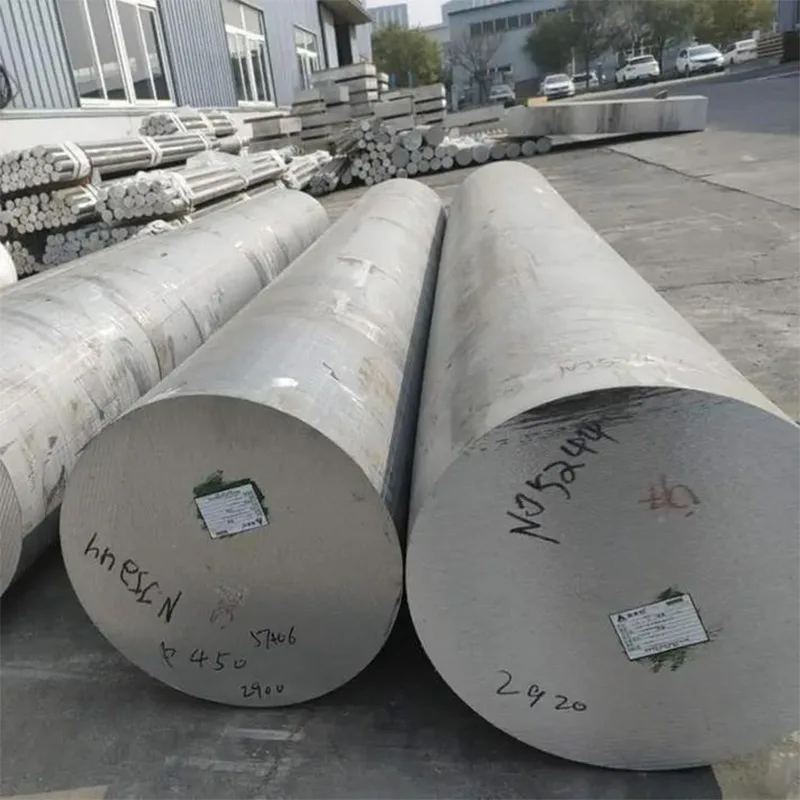

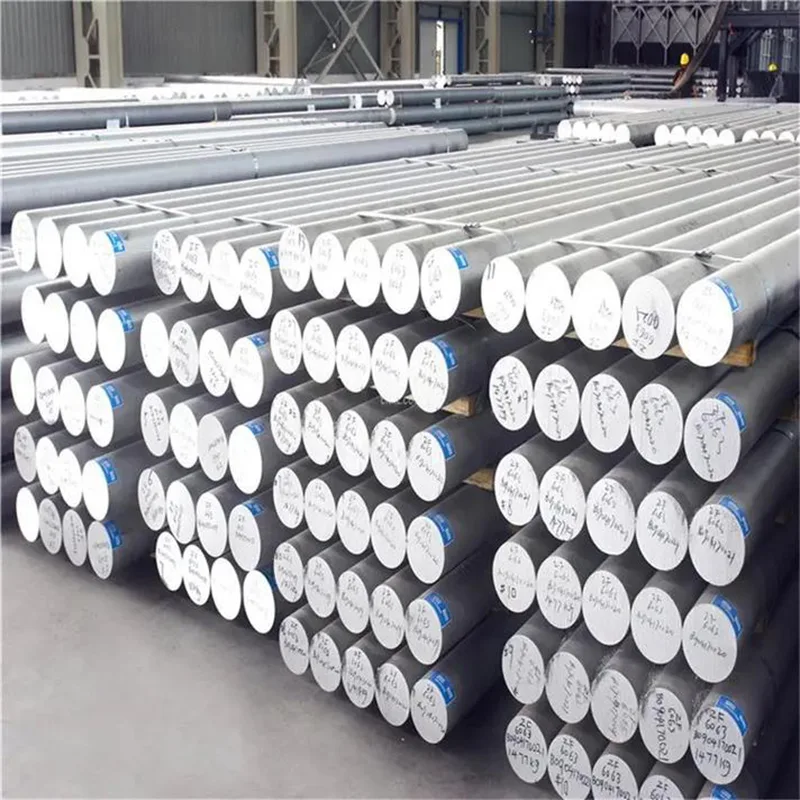

5A06 Aluminum Rod

Core Performance Advantages and Disadvantages

1. Core Advantages

Superior Corrosion Resistance: Performs exceptionally well in marine, humid atmospheric, and industrial corrosive environments, far superior to 2-series duralumin, with extremely low risk of intergranular corrosion.

Excellent Weldability: Excellent performance in argon arc welding, gas welding, and spot welding; weld strength reaches 90-95% of the matrix, suitable for complex welded structures.

Excellent Low-Temperature Toughness: Maintains good plasticity even at -196℃ liquid nitrogen environment, with no low-temperature brittleness.

Good Machinability: Excellent plasticity in the O state, suitable for bending, stamping, and deep drawing; the H112 state is suitable for cutting, extrusion, and forging.

Medium Strength: Relatively high strength among non-heat-treatable alloys, slightly higher than 5052/5083, with significant lightweighting effect.

2. Main Disadvantages

Cannot be heat-treatable for strengthening; ultimate strength is lower than 2A12 and 7075. Heat-treatable alloys:

Cut efficiency is low in the annealed state, requiring optimization of tools and process parameters.

Plasticity decreases after cold work hardening, requiring control of deformation.

Aluminum rod manufacturer's recommendations: Selection and usage points for 5A06 aluminum rods

1. Temperament selection:

Deep drawing, complex bending parts → O temper (best plasticity)

General structural parts, welded parts → H112 temper (no heat treatment required)

Heavy-duty structural parts → H32/H34 temper (cold work hardening improves strength)

2. Welding recommendations:

Prioritize TIG/MIG welding, resulting in the highest weld joint strength.

Good gas welding and spot welding performance, suitable for joining plates of different thicknesses.

Clean the surface before welding to avoid oil stains and oxide films affecting weld quality.

3. Surface treatment:

Anodizing treatment results in a beautiful surface and further improved corrosion resistance.

Spraying, electrophoresis, and other protective processes can be used to adapt to different environmental requirements.

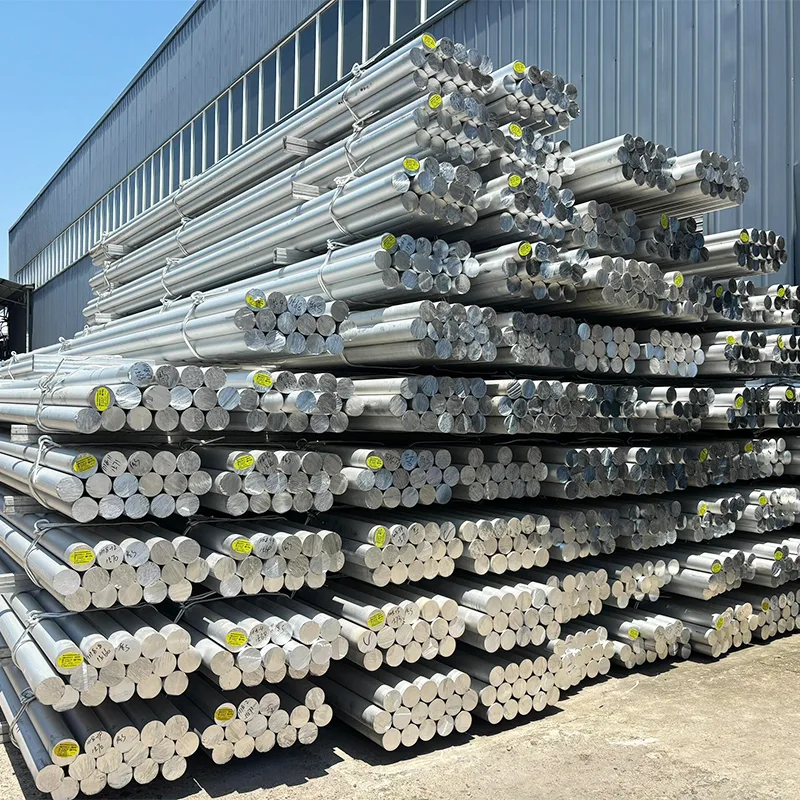

4. Comparison with 5083:

Higher magnesium content (5.8-6.8% vs 5083) 4.0-4.9% (slightly higher strength)

Welded joints have better strength (90-95% vs 85-90%)

The 5083 international standard is more mature and offers better supply stability.
