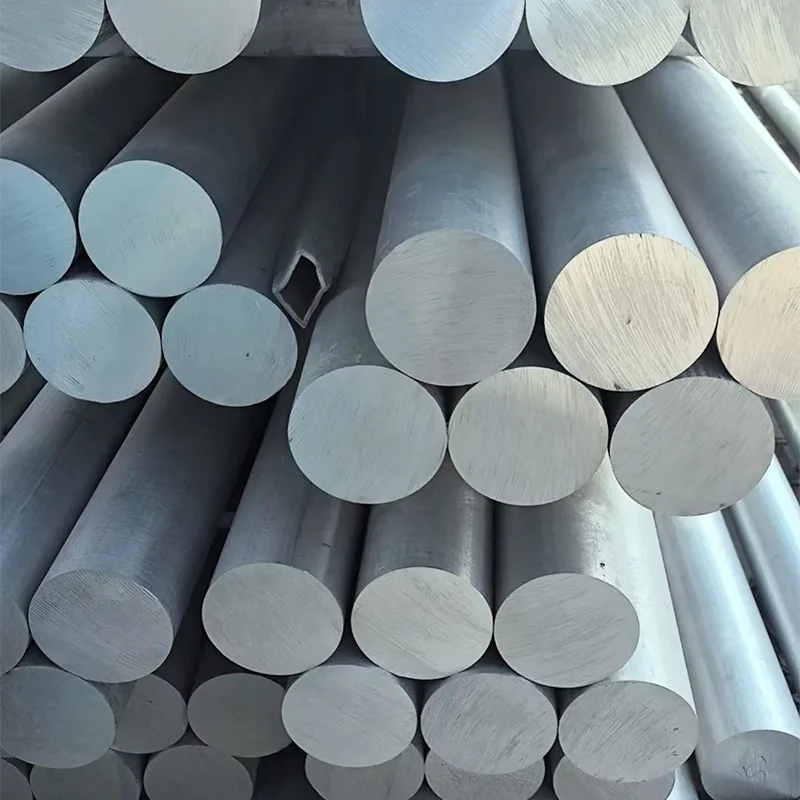

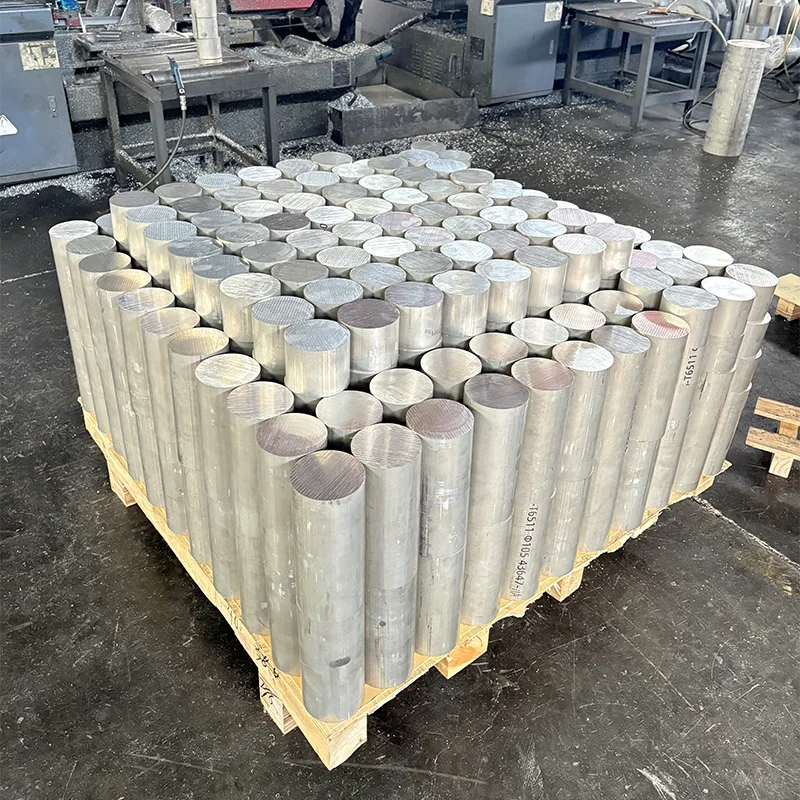

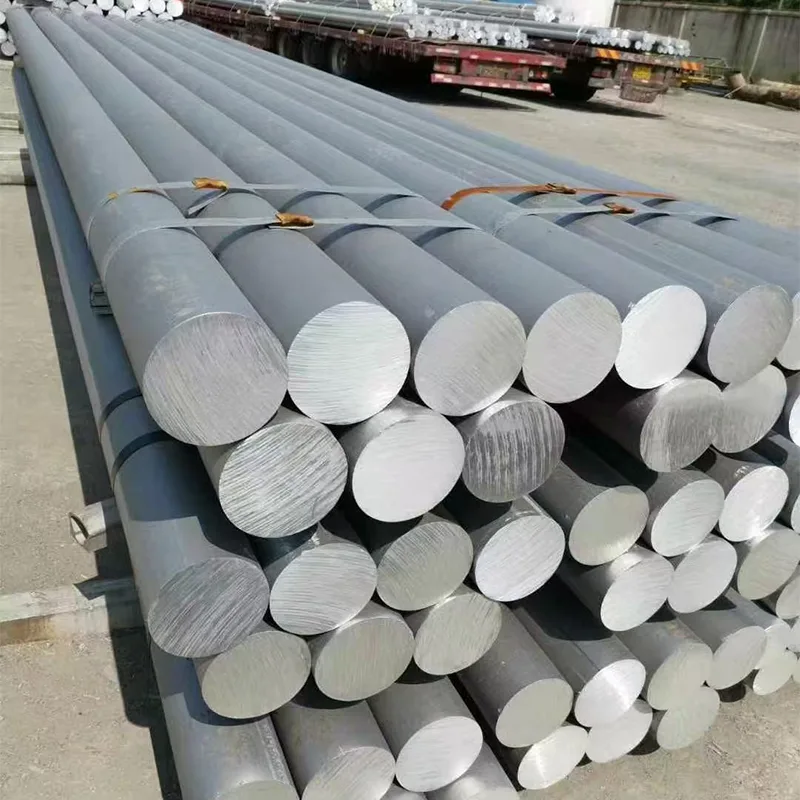

6063 Aluminum Rod

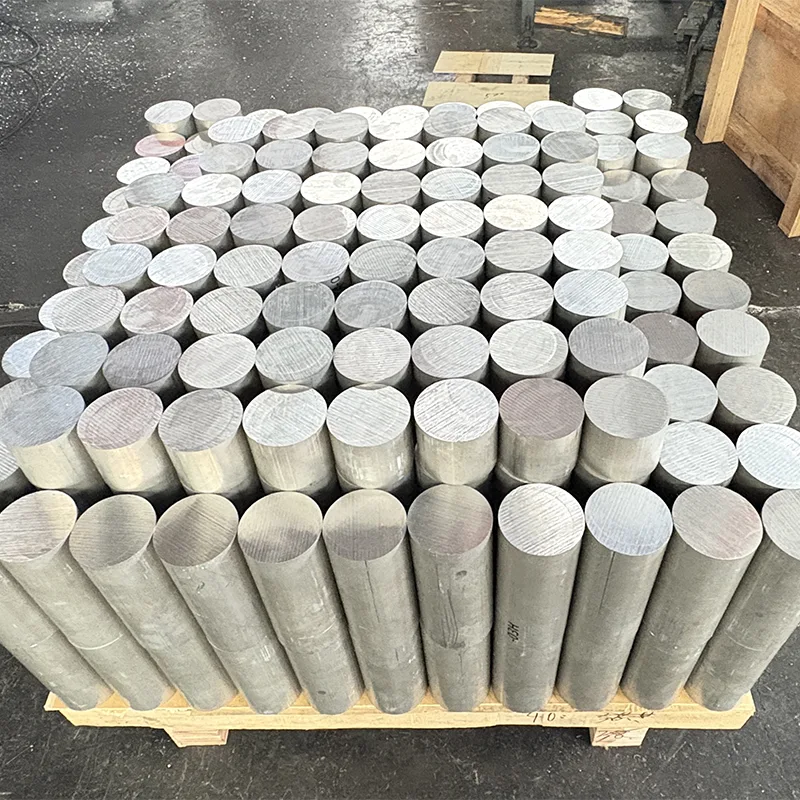

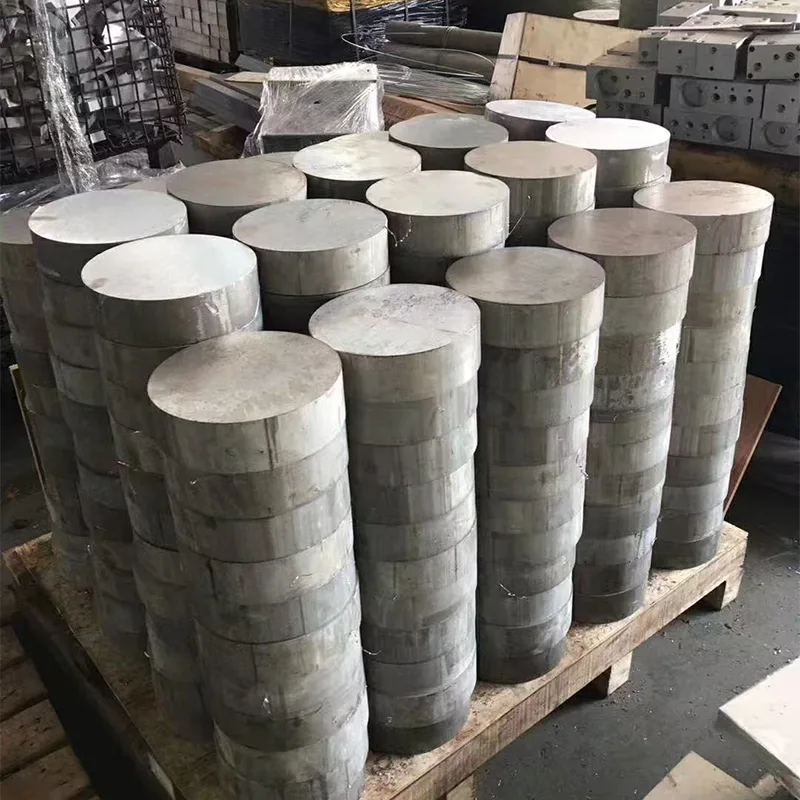

China's leading 6063 Aluminum Rod factory primarily supplies rods with diameters ranging from φ5mm to 200mm, with limited stock of larger diameter rods. Standard length is 6 meters, but custom lengths and cut-to-size options are available. Dimensional tolerances are flexible, suitable for extrusion molding requirements.
6063 aluminum rods belong to the 6000 series aluminum-magnesium-silicon alloy, a heat-treatable wrought aluminum alloy. It is one of the most widely used aluminum materials in construction, decoration, and light structural applications, often referred to in the industry as a construction-specific aluminum alloy. The mainstream is the T5 temper (air-cooled aging after extrusion, offering the best cost-performance ratio and highest production volume), followed by the T6 temper (slightly stronger than T5). H112 and O tempers are also commonly available. There are no complex stress-relieving tempers.
What is the difference between 6063 and 6061 aluminum rods?
|
Comparison Dimensions |
6063 Aluminum Rod |
6061 Aluminum Rod |
|
Product Positioning |
Architectural decoration, light extrusion alloy |
General-purpose structural and machining-specific alloy |
|
Alloy Composition |
Low magnesium and silicon content, few strengthening elements |
Higher magnesium and silicon content, more balanced strengthening element ratio |
|
Overall Strength |
Low content, unable to withstand large loads |
Medium to high content, stronger mechanical properties |
|
Extrusion/Forming Performance |
Excellent plasticity, easy to extrude and bend, suitable for complex cross-sections |
Moderate plasticity, slightly more difficult to extrude, not suitable for large deformations |
|
Machining Performance |
Soft material, prone to tool sticking during cutting, average surface finish |
Excellent machinability, less prone to tool sticking, suitable for precision machining |
|
Surface Treatment Effect |
Top-notch anodizing, electrophoresis, and spraying effects, uniform and bright color, strong decorative properties |
Surface treatment is possible, but the anodized color is darker, and the decorative texture is weaker |
|
Common Supply Status |
Mainly T5, some T6 |
Main grades: T6, T4, T651, wider range of working conditions |
|
Corrosion Resistance |
Good, slightly better than 6061, suitable for general outdoor use |
Good performance, suitable for general outdoor and humid environments |
|
Applicable Load Capacity |
Only for light loads, low stress, and non-load-bearing parts |
Medium load, structural load-bearing components |
|
Mainstream Specifications |
Mainly small diameter rods and various extruded profiles |
Full range of round and square bars available, ample stock of large-diameter bars |
|
Market Price |
Slightly lower price for the same specifications |
Slightly higher price for the same specifications |
Aluminum rod manufacturers recommend: For aesthetics, extrusion, and light loads → choose 6063; for strength, machining, and load-bearing capacity → choose 6061.
