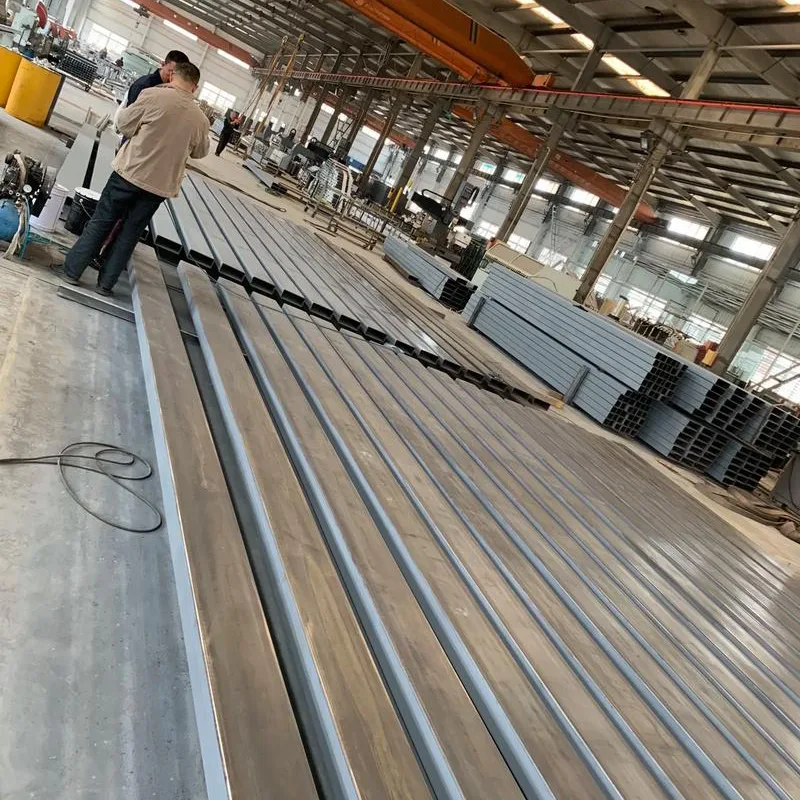

Fluorocarbon Coated Aluminum Tube

Fluorocarbon-coated aluminum pipes use 6063 or 6061 aluminum alloy pipes as the base material. After degreasing and chromating pretreatment, they are electrostatically coated with PVDF fluorocarbon liquid paint in multiple layers and cured at high temperature. The coating relies on stable C-F chemical bonds, resisting UV radiation, salt spray, and acid rain corrosion. It is a high-end outdoor anti-corrosion and decorative pipe material, distinct from ordinary powder-coated and anodized aluminum pipes, offering significantly superior protection and durability. The process involves two or three coats, with a total film thickness of 30–60 μm, exhibiting strong adhesion and resistance to peeling.

Main Application Scenarios

Architectural Outdoor Sector: High-rise curtain wall keel, exterior wall railings, balcony railings, outdoor skylight supports, landscape pavilions, billboard frames; preferred for coastal buildings with high salt spray conditions.

Harsh Industrial Scenarios: Coastal equipment supports, anti-corrosion pipelines in chemical plants, photovoltaic supports, protective frames for large outdoor equipment.

Municipal and Cultural Tourism: Overpass handrails, scenic area decorative pipes, outdoor lighting poles, external decorative components for rail transit.

Special Needs Scenarios: High UV radiation in plateau regions, areas prone to acid rain, projects requiring color retention and long-term corrosion resistance for over 20 years.

How Long is the Service Life of Fluorocarbon Coated Aluminum Pipes?

The service life of PVDF fluorocarbon coated aluminum pipes varies depending on the environment and process, primarily determined by the coating quality, coating process, and usage environment.

1. Indoor Environment: Unaffected by sunlight and salt spray corrosion, the coating ages extremely slowly. Under normal cleaning and maintenance, the overall service life can reach 25-30 years, with minimal fading, chalking, or peeling, maintaining complete protective effects over a long period.

2. Outdoor Use in Ordinary Inland Cities (No Coastal Areas, No Heavy Industrial Pollution): Utilizing a three-coat, two-bake standard fluorocarbon process with PVDF content ≥70%, the film thickness is over 35μm. Stable outdoor use for 15-20 years without significant fading, chalking, blistering, or peeling. Top-tier imported fluorocarbon paints, with proper maintenance, can extend this lifespan to 20-25 years, with only slight gloss loss and unaffected corrosion resistance.

3. Harsh Environments such as Coastal Areas, Acid Rain Industrial Zones, and High-Altitude Areas with Strong UV Radiation: Chloride ions, UV radiation, and acidic pollutants accelerate coating aging, shortening the lifespan to 12-15 years. After 15 years, only slight gloss loss is observed, and the substrate remains resistant to rust, demonstrating a significant advantage over the approximately 8-year aging lifespan of ordinary powder coatings.

Key Factors Affecting Lifespan

1. Coating Standards: Low-priced pseudo-fluorocarbon coatings (insufficient PVDF content, FEVE simplified fluorocarbon) have a lifespan of only 8-10 years and are prone to fading and peeling; only fluorocarbon coatings meeting the AAMA2605 standard with 70% PVDF possess long-lasting weather resistance.

2. Spraying Process: Simplified two-coat-one-baking processes and inadequate pretreatment degreasing and chromating significantly reduce coating adhesion, leading to blistering and peeling after 5-10 years.

3. Routine Maintenance: Regularly rinsing the surface with water to remove salt and dust can effectively extend the service life by 3-5 years; long-term accumulation of salt and oil will accelerate coating damage.

Compared to the durability of ordinary powder coating (7-10 years outdoors) and anodizing (8-12 years outdoors), fluorocarbon coating is the preferred choice for high-durability, corrosion-resistant outdoor aluminum pipes.
