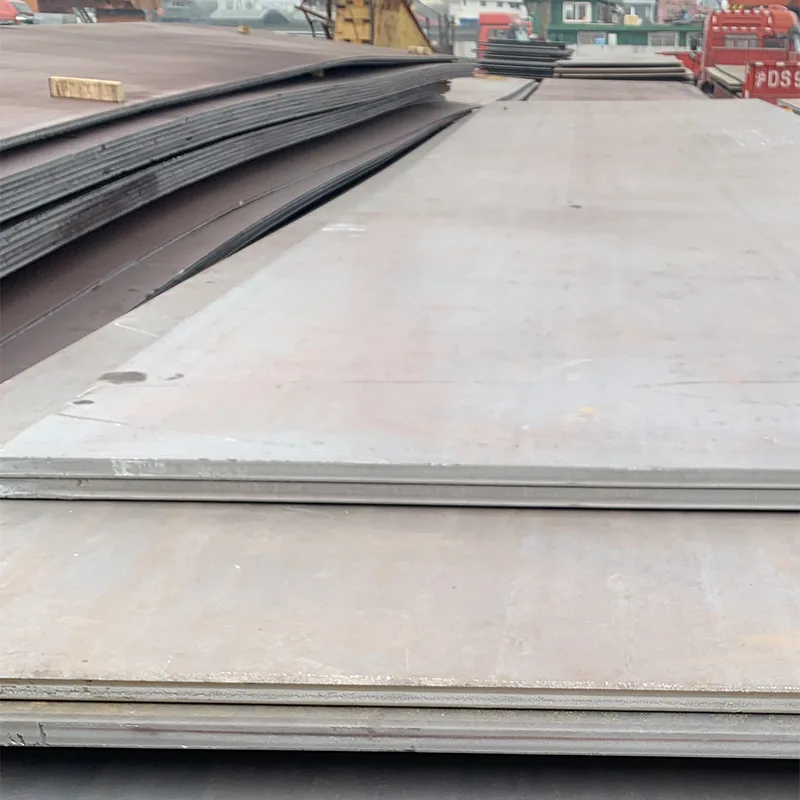

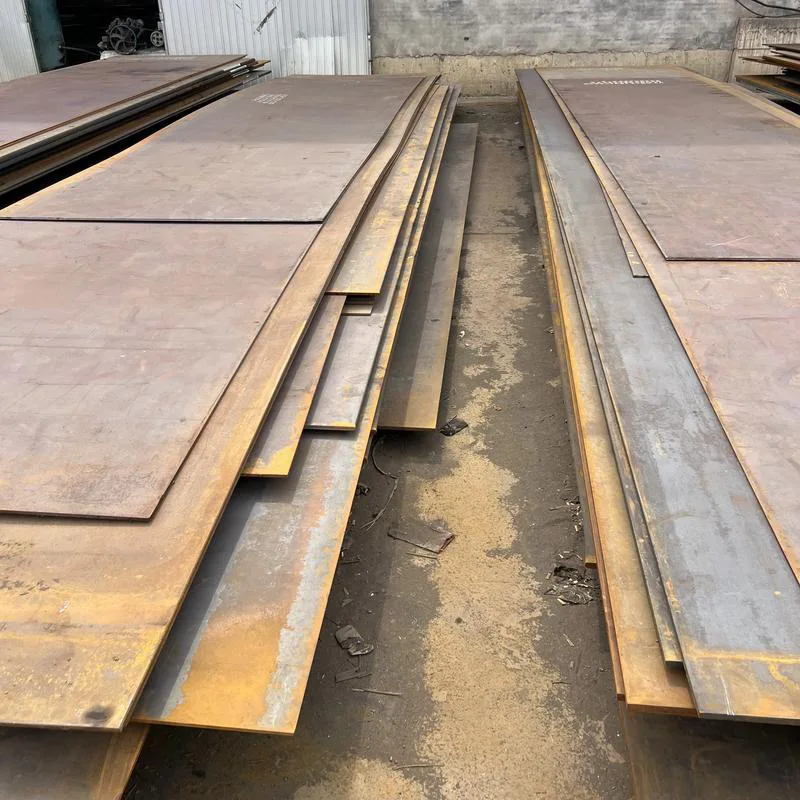

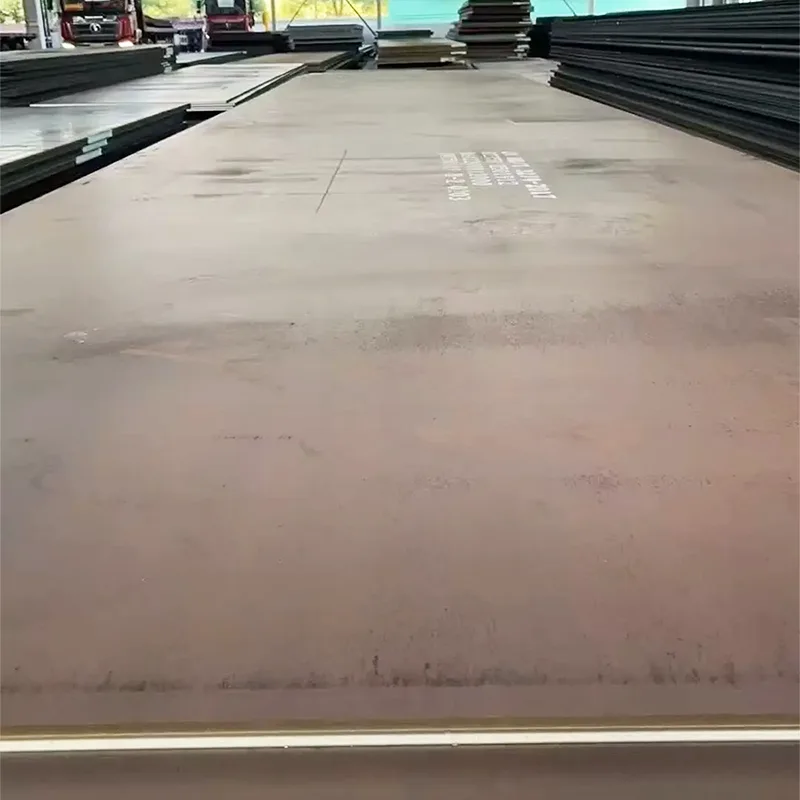

Manganese Plate High-Strength Wear-Resistant Steel Plate

Manganese Plate High-Strength Wear-Resistant Steel Plate is a type of steel plate made primarily with high manganese content and enhanced alloying elements, designed to deliver excellent wear resistance and impact toughness. Under strong impact or abrasive conditions, the surface undergoes work hardening, which significantly increases hardness while maintaining core toughness.

It is widely used in mining, cement, metallurgy, construction machinery, and material handling equipment where severe abrasion and heavy impact occur.

Common Properties and Key Parameters

Hardness is the core of wear resistance: For every 50 HBW increase in Brinell hardness, wear resistance increases by approximately 30%; NM500's wear life is 5-8 times that of ordinary Q235 steel.

Strength and toughness balance: Yield strength is generally ≥800MPa, more than 3 times that of ordinary carbon steel; elongation ≥6%-12%, ensuring impact resistance without brittle fracture.

Core role of manganese: Improves hardenability, strengthens the matrix, enhances wear resistance, and simultaneously improves toughness and weldability.

Execution Standards: Domestic NM series conforms to GB/T 24186-2022; Mn13 conforms to GB/T 5680; imported brands conform to the original manufacturer's standards.

Selection Principles

Light wear, low impact: NM360/XAR400

Medium wear, balanced requirements: NM400/HARDOX450

Heavy wear, high impact: NM500/HARDOX500

High impact conditions: Mn13 high Manganese Plate High-Strength Wear-Resistant Steel Plate

Elastic wear-resistant parts: 65Mn

Manufacturer Processing Services

Cutting: Laser, plasma, flame cutting; supports irregular shape processing

Forming: Bending, rolling, beveling; adaptable to curved structures

Welding: Provides dedicated welding rods and process guidance (NM400 has the best weldability; NM600 requires strict preheating)

Customization: Processing finished parts according to drawings; custom cutting to reduce waste.

Product Advantages

Manganese Plate High-Strength Wear-Resistant Steel Plate has several key advantages, especially in harsh working environments involving heavy impact and abrasion:

Excellent work hardening ability: Under impact or pressure, the surface becomes harder, significantly improving wear resistance during use.

High impact toughness: Maintains strong resistance to cracking even under severe shock loads.

Long service life: Reduced wear rate extends equipment lifespan and lowers replacement frequency.

Strong resistance to abrasion: Performs well in environments with continuous friction such as mining and quarrying.

Good ductility and safety performance: Prevents brittle fracture, ensuring stable operation under stress.

Cost-effective in long-term use: Although initial cost may be higher, reduced maintenance and downtime lower overall operating costs.

It is widely used in mining machinery, crusher liners, conveyor systems, cement plants, and heavy-duty engineering equipment.

FAQ

Q1: What is Manganese Plate High-Strength Wear-Resistant Steel Plate?

A: It is a wear-resistant steel plate with high manganese content, offering excellent impact resistance and work-hardening properties for heavy-duty applications.

Q2: What are the main applications of manganese wear-resistant steel plates?

A: It is widely used in mining, quarrying, construction machinery, cement plants, and material handling equipment.

Q3: Why is manganese steel suitable for wear-resistant applications?

A: High manganese steel becomes harder under impact, providing long service life in high-wear environments.

Q4: What are the advantages of manganese wear-resistant steel plates?

A: It offers strong impact resistance, high toughness, long durability, and excellent resistance to severe abrasion.

Q5: Can manganese steel plates be cut and welded easily?

A: Yes, but special welding procedures are recommended due to its high strength and work-hardening characteristics.

Q6: What thickness options are available?

A: Manganese plates are available in various thicknesses and can be customized according to industrial requirements.
