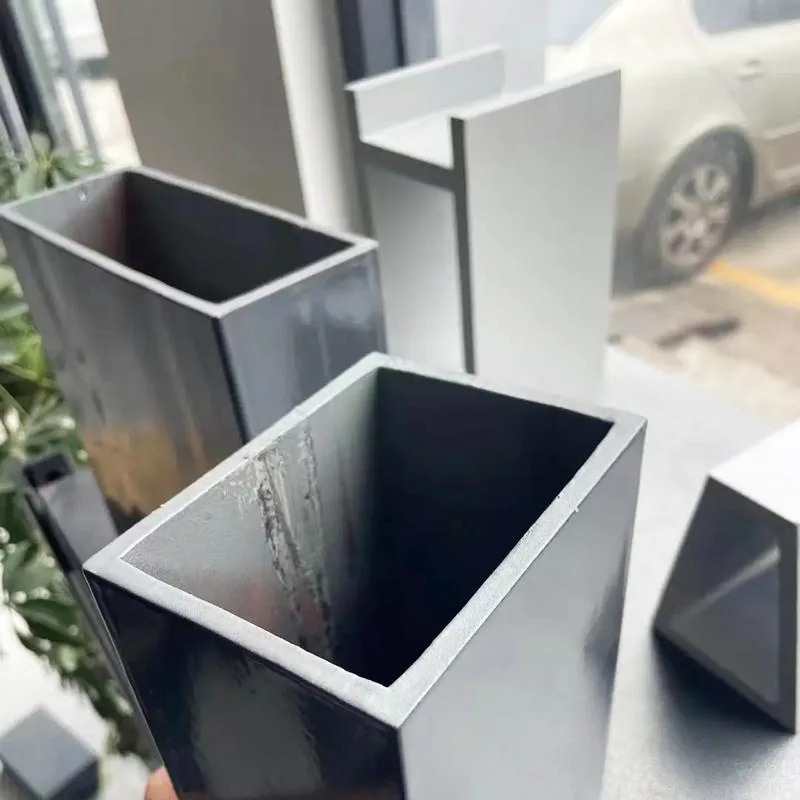

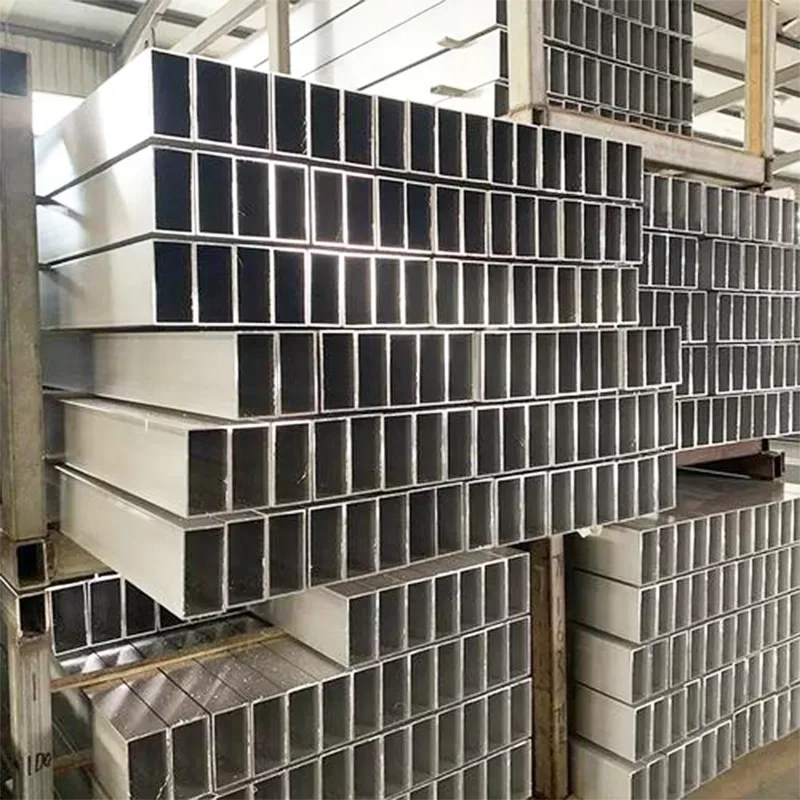

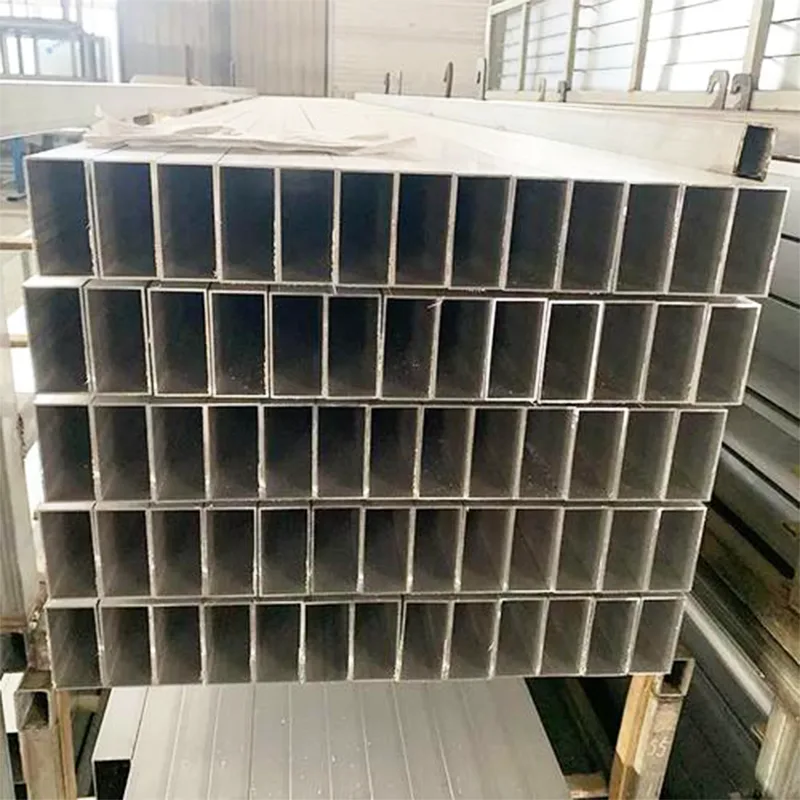

6082 Aluminum Square Tube

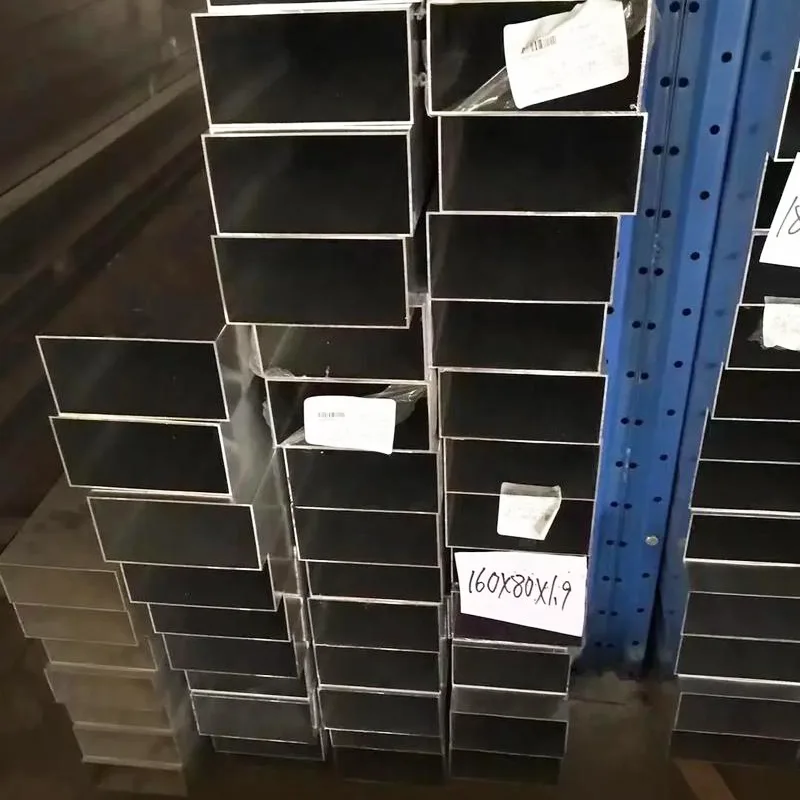

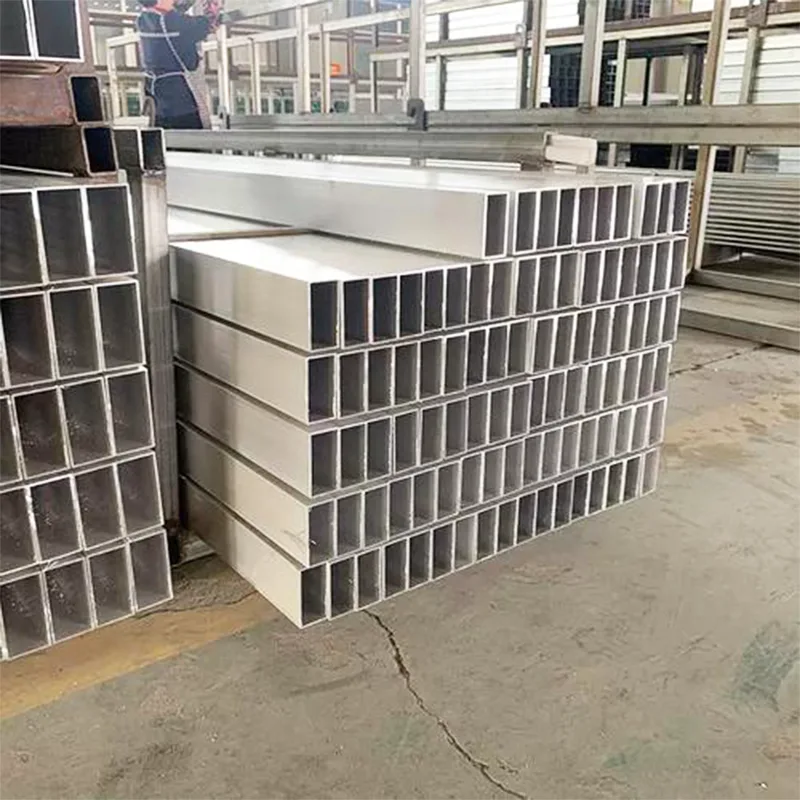

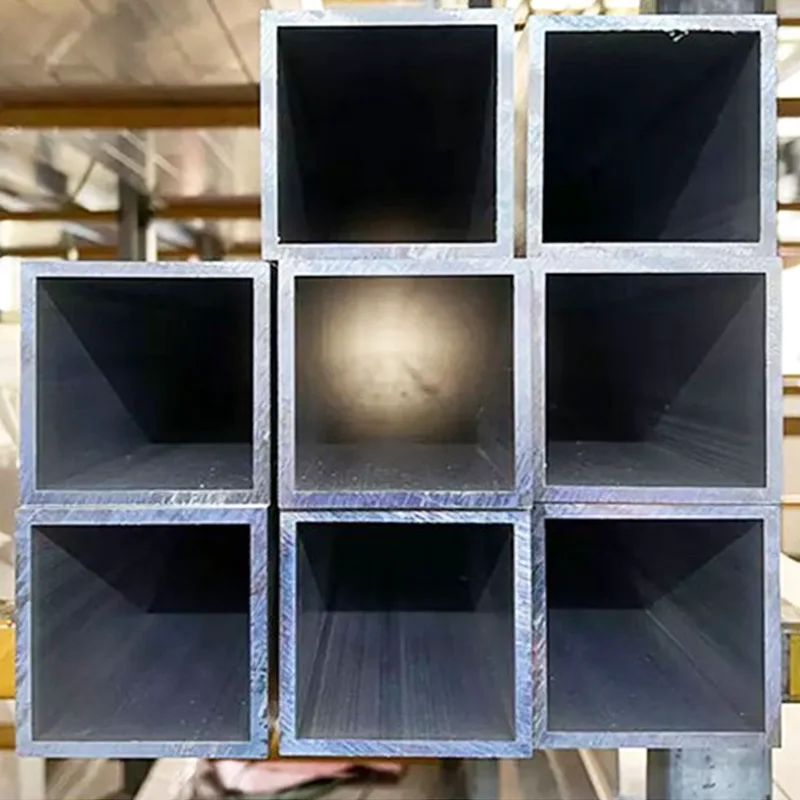

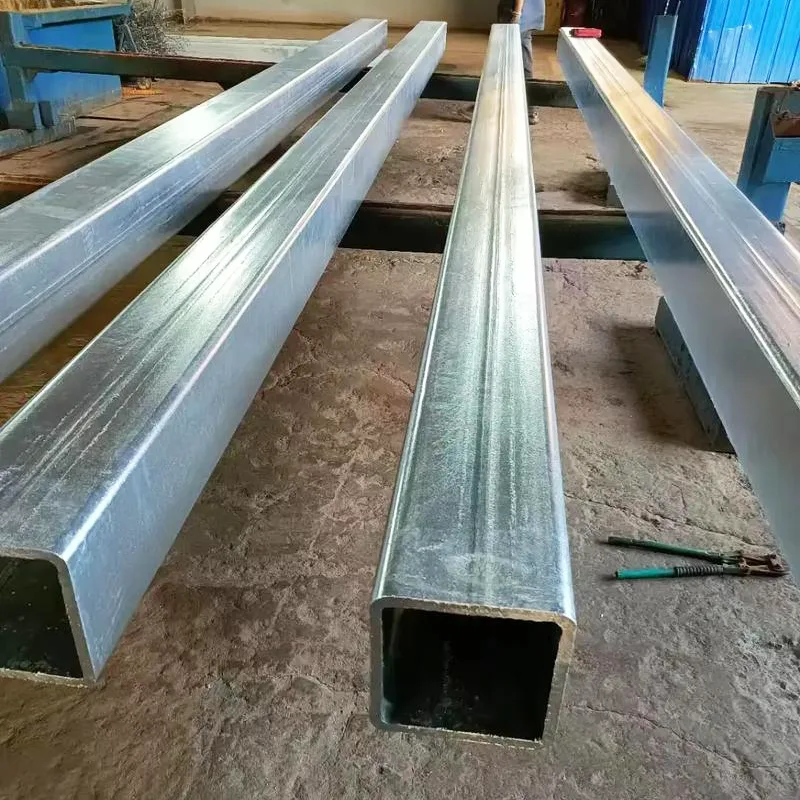

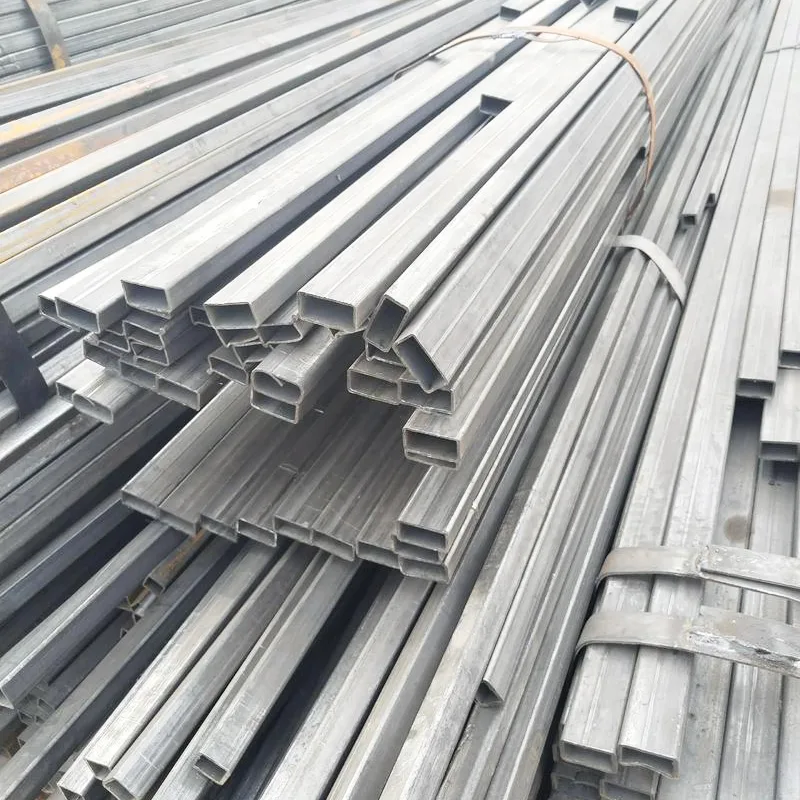

6082 aluminum square tubes have a cross-section of 10×10~300×300mm, wall thickness of 1.2~8mm, and length of 6~12m (custom lengths available), primarily in T6 temper. Our Chinese factory provides processing services: cutting, drilling, bending, welding, CNC machining, anodizing, and painting. We also support non-standard customization and export packaging.
6082 aluminum square tubes are square-section tubing made of 6-series Al-Mg-Si-Mn heat-treatable strengthened aluminum alloy. They are high-strength structural aluminum profiles, second only to 6005A in strength within the 6000 series, and boast three core advantages: high strength, excellent weldability, and resistance to seawater corrosion.
Core Mechanical Properties (T6 Temperament)
|
Performance Indicators |
Numerical range |
Advantages |
|
Tensile Strength |
310-420MPa |
Approximately 10-15% higher than 6061, approaching the strength of some 7-series alloys. |
|
Yield Strength |
≥260MPa |
Strong structural load-bearing capacity and excellent resistance to deformation. |
|
Elongation |
≥8% |
Balances strength and a certain degree of plasticity, easy to process. |
|
Brinell Hardness |
≥95HBW |
Good wear resistance. |
|
Welded Joint Strength |
≥90% of the base material |
Minimal strength loss after welding, suitable for welding large structures. |
Key Differences Between 6082 and 6061/6063 Aluminum Square Tubes
|
Comparison Dimensions |
6082 Aluminum Square Tube |
6061 Aluminum Square Tube |
6063 Aluminum Square Tube |
|
Strength Position |
High Strength (Top of the 6000 series) |
Medium-High Strength |
Medium Strength |
|
Welding Performance |
Optimal (Mn element optimizes weld zone performance) |
Good |
Average |
|
Corrosion Resistance |
Best (Low Cu content, stronger seawater resistance) |
Good |
Good (Excellent decorative properties after oxidation) |
|
Processing Difficulty |
Slightly Higher (High Strength) |
Moderate |
Lowest (Easy to bend and form) |
|
Main Applications |
Suitable for load-bearing structures, marine/transportation applications |
Industrial Machinery, General Structure |
Architectural Decoration, Doors, Windows, Curtain Walls |
|
Price Level |
Highest |
Medium |
Lowest |
Processing Points
1. Heat Treatment: Aluminum square tube manufacturers recommend using the T6 temper (solution treatment + artificial aging) to obtain optimal mechanical properties.
2. Welding Method: TIG welding is preferred to maximize joint strength.
3. Surface Treatment: Oxidation and spraying are both acceptable; anodizing is recommended to improve corrosion resistance and appearance.
