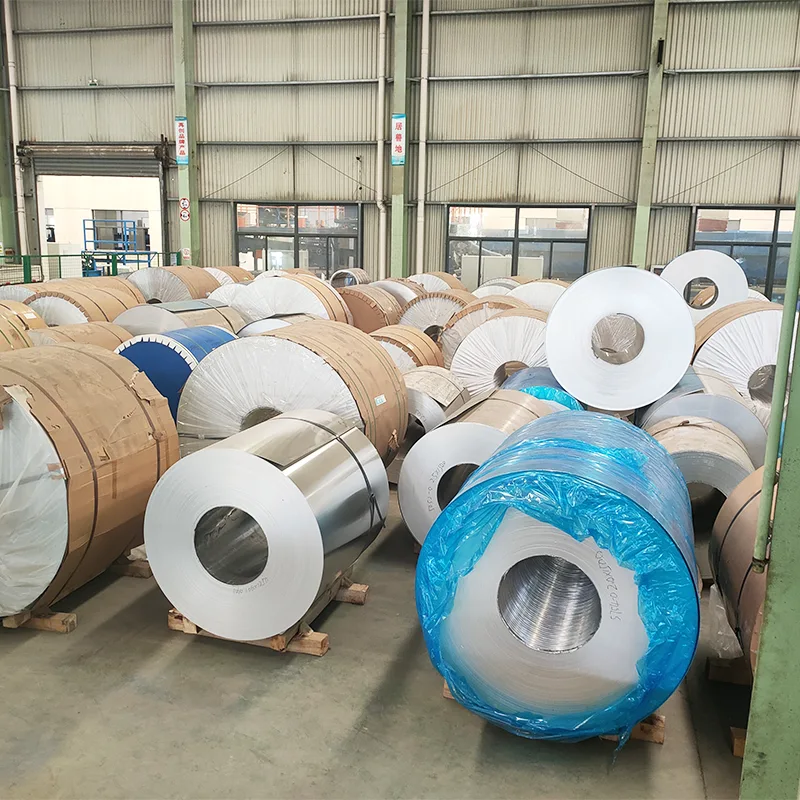

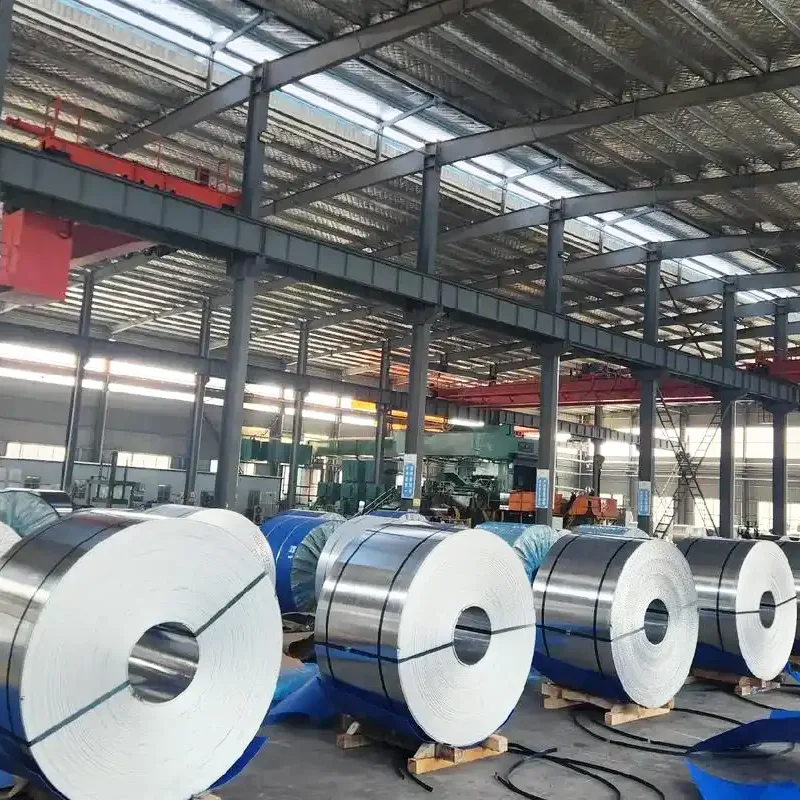

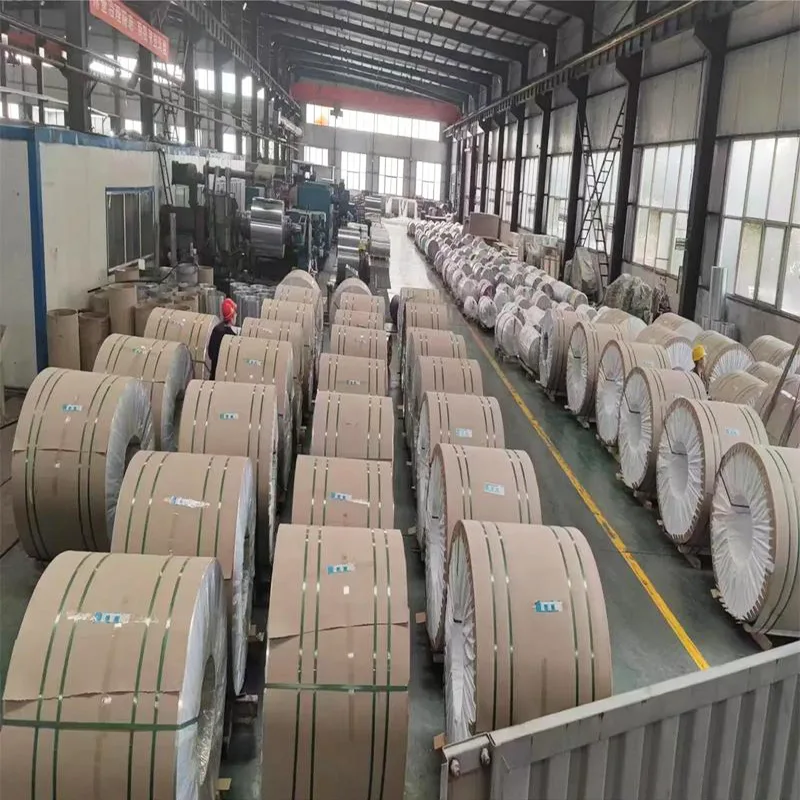

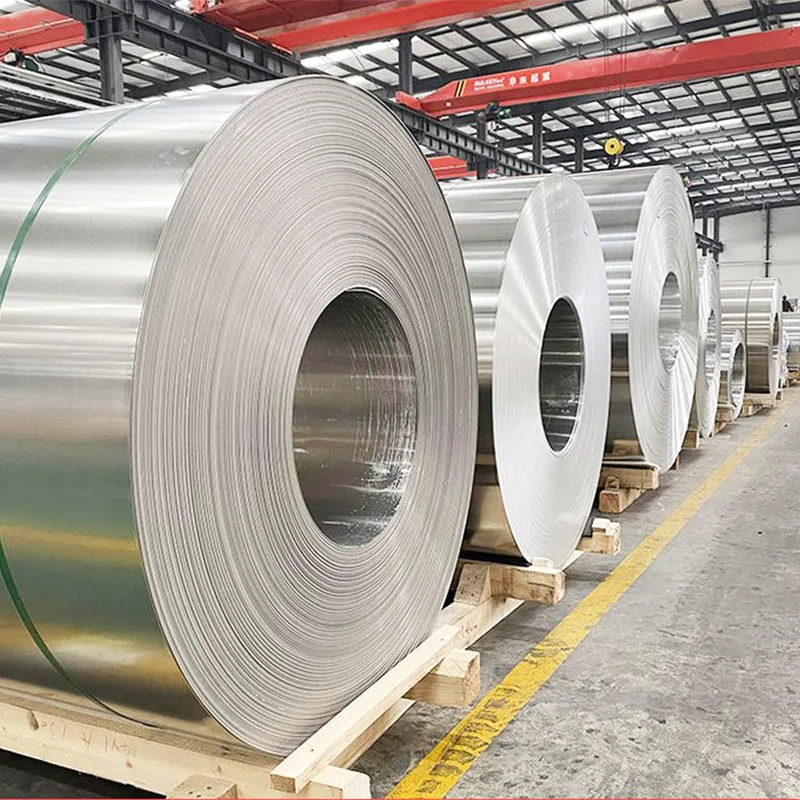

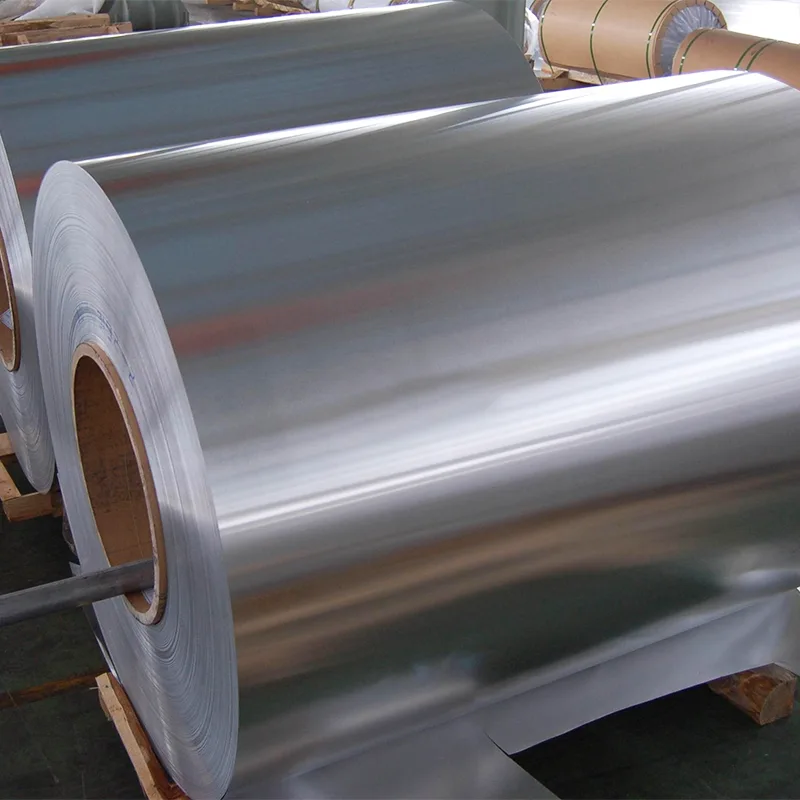

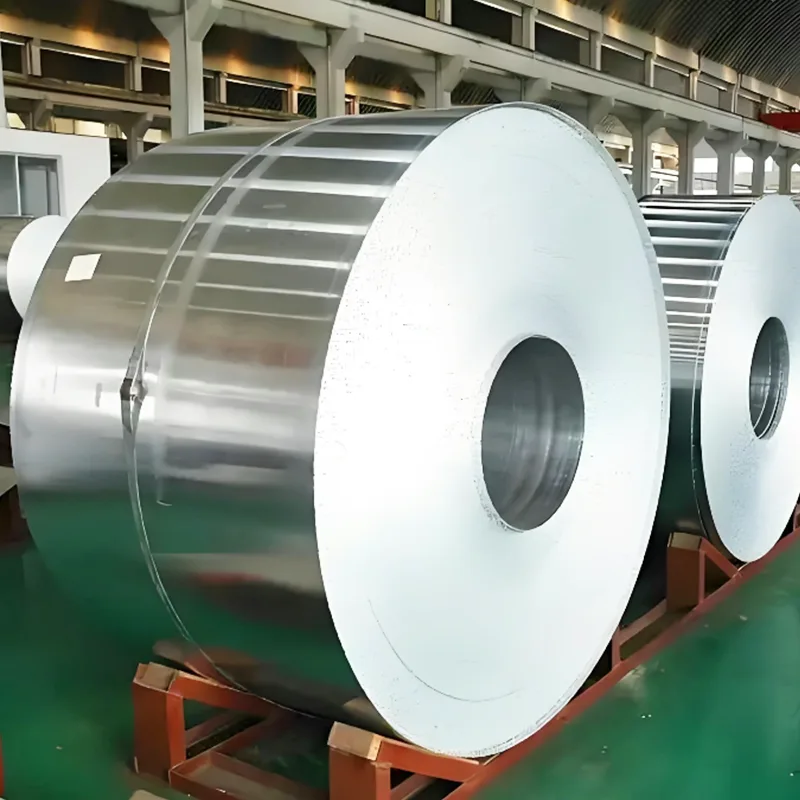

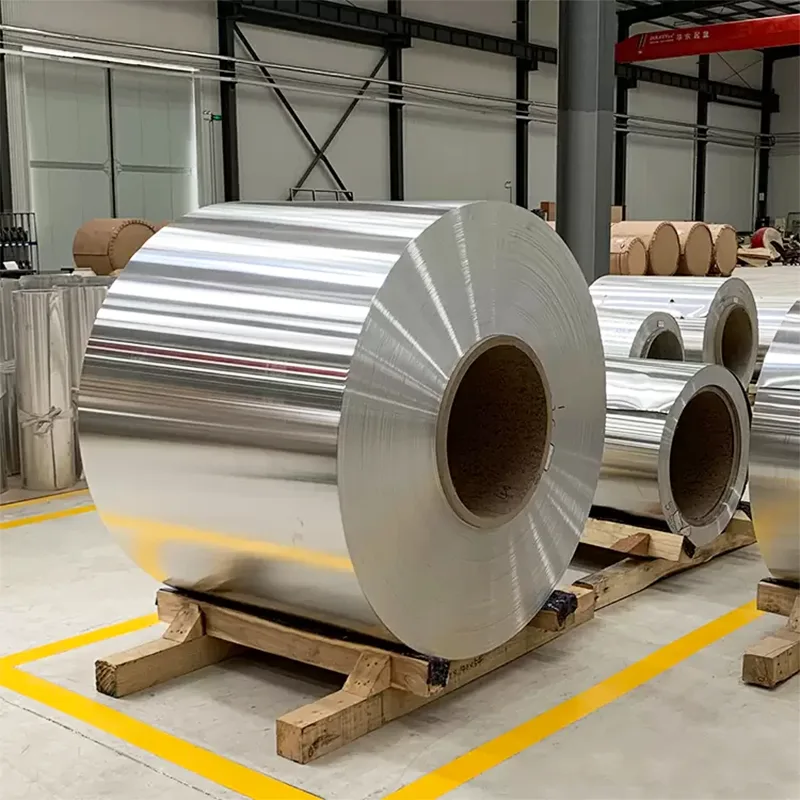

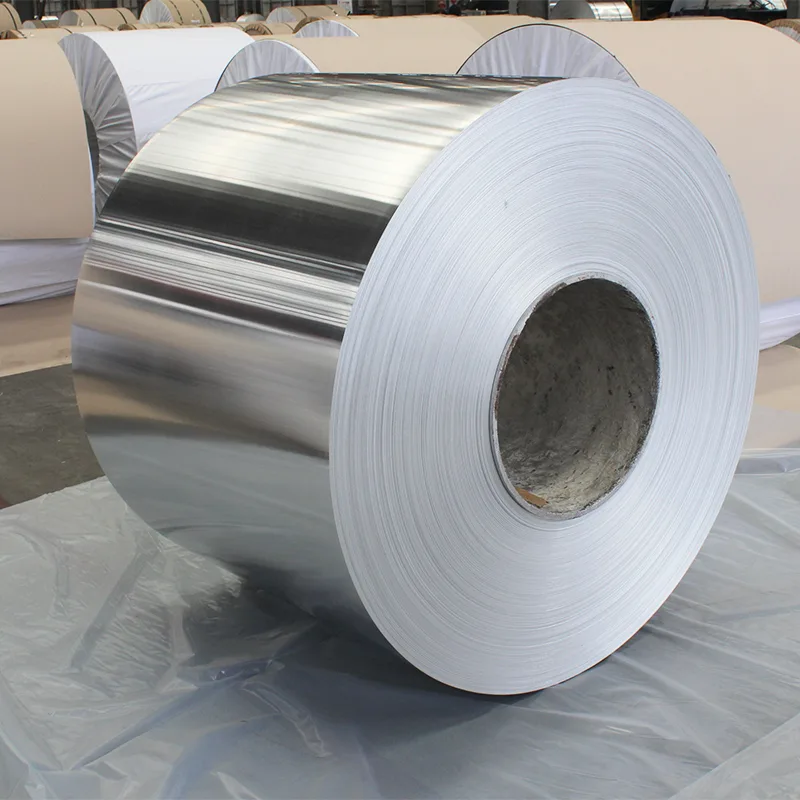

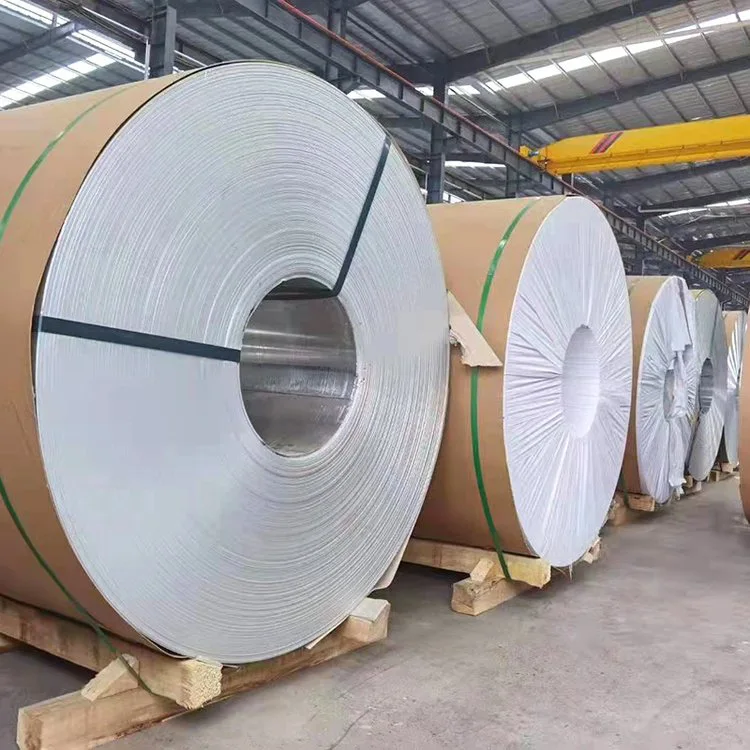

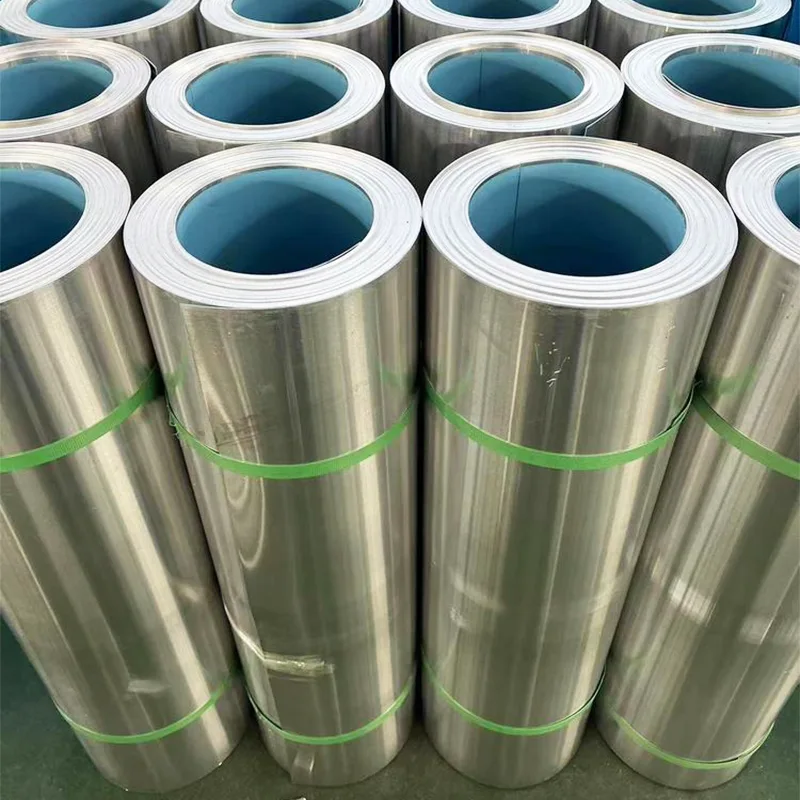

1060 Aluminum Coils
China's leading manufacturer of 1060 aluminum coils typically stocks thicknesses of 0.3-1.0mm, with mainstream thicknesses of 0.4mm and 0.5mm, and standard widths of 1000mm and 1220mm. A variety of hardness and softness conditions are available, and the coils can be slitting and cutting.
1060 aluminum coils belong to the 1-series industrial pure aluminum, with an aluminum content ≥99.6% and total impurities ≤0.4%. It is a high-purity, general-purpose pure aluminum material. It does not contain alloying elements such as manganese and magnesium, and cannot be strengthened through heat treatment; its hardness and softness can only be adjusted through cold working (O soft state, H22, H24, H18, etc.). It features high purity, high plasticity, excellent electrical conductivity, and corrosion resistance, and is widely used in applications where strength requirements are not high but processing performance and corrosion resistance are important.
Comparison Table of Core Differences between 1060 and 1100 Aluminum Coils
|
Comparison Dimensions: |
1060 Aluminum Coil |
1100 Aluminum Coil |
Key Differences and Their Impact: |
|
Aluminum Content |
≥99.6% |
≥99.0% |
1060: Higher purity, fewer impurities |
|
Key Components |
Cu≤0.05%, Si≤0.25%, Fe≤0.35% |
Cu: 0.05%~0.20%, Si+Fe≤0.95% |
1100: Higher copper content, slightly higher strength |
|
Tensile Strength |
O Temper: 70-90MPa |
O Temper: 75-95MPa |
1100: Slightly higher strength (5-10 MPa) |
|
H18 Temper: 150-180MPa |
H18 Temper: 160-190MPa |
||
|
Dulleriness |
Superior, elongation 20%-40% |
Good, elongation 15%-30% |
1060: Easier to bend and deep-draw |
|
Corrosion Resistance |
Superior, denser natural oxide film |
Good, slightly inferior to 1060 |
1060: More suitable for humid/slightly corrosive environments |
|
Conductivity |
Superior, approximately 62% IACS |
Good, approximately 55% IACS |
1060: Suitable for conductive/heat dissipation applications |
|
Hardness |
Relatively softer |
Slightly hard (affected by copper content) |
1100: Slightly stronger resistance to deformation |
|
Price |
Slightly higher (higher purity) |
Relatively economical |
1100: Higher cost-effectiveness for mass production projects |
|
Typical Applications |
Applications: Conductive components, heat sinks, mirror decoration, food packaging |
Applications: Pipe insulation, exterior wall cladding, general decoration, stamped parts |
Choose the appropriate material based on performance requirements |
Differences in Applicable Scenarios between 1060 and 1100 Aluminum Coils
Preferred Scenarios for 1060 Aluminum Coils:
1.Conductive/Heat Dissipation Components (e.g., busbars, heat sinks, appliance housings)
2.Mirror Finishes, Anodized Parts
3.Food Packaging, Pharmaceutical Containers
4. Slightly Humid Environments Requiring High Corrosion Resistance
Preferred Scenarios for 1100 Aluminum Coils:
1.Pipe Insulation Shelves, External Wall Insulation Layers
2. Ordinary Decorative Panels, Billboards
3.Hardware Stamping Parts, Simple Bending Parts
4. Bulk Project Procurement (Higher Cost-Effectiveness)
